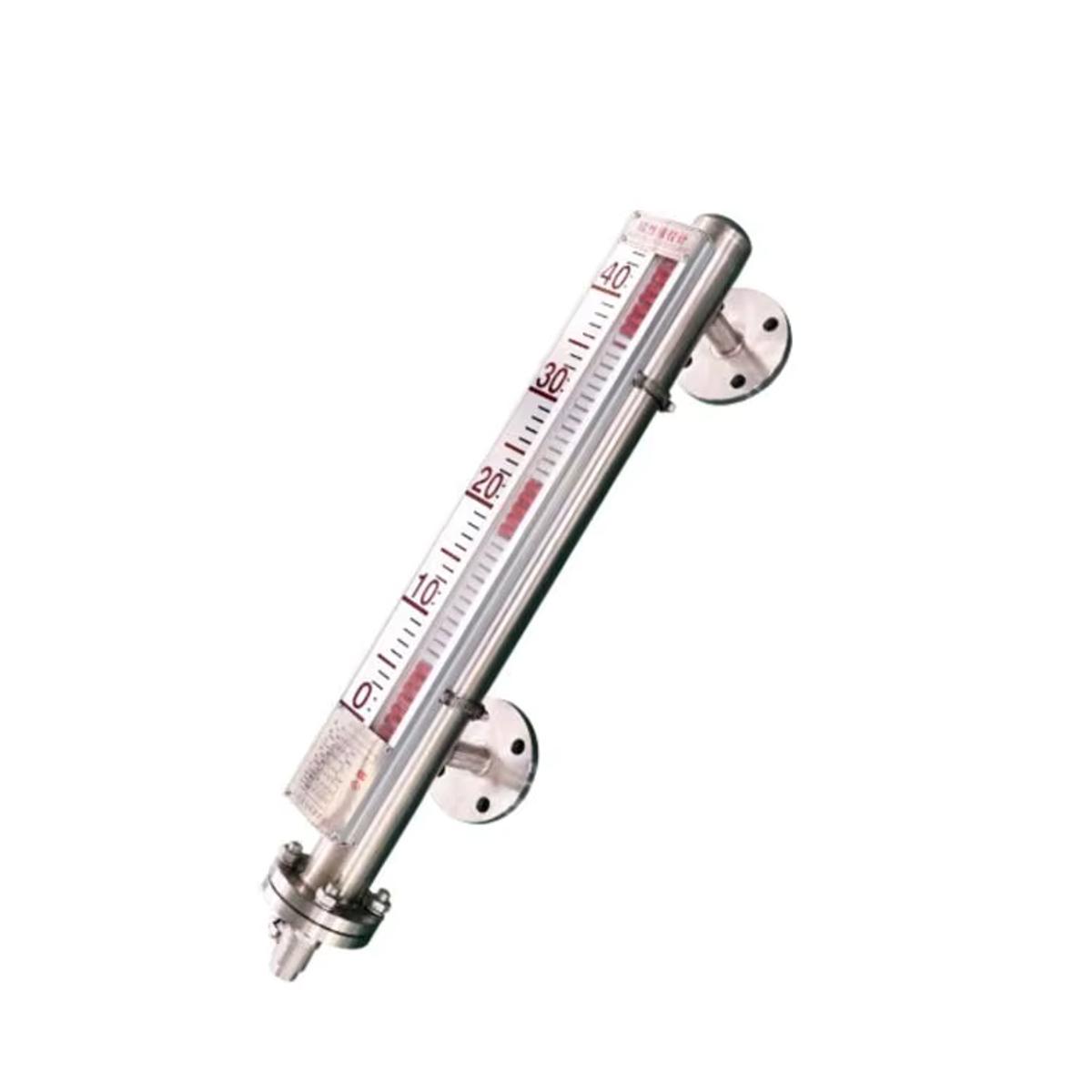

Anti-Corrosion Lined Magnetic Level Gauge

Name: Anti-Corrosion Lined Magnetic Level Gauge
Brand: WELK Level

Magnetic level gauge with PTFE, PP, PVC or lined wetted parts for corrosive liquid tanks.

Wetted partsPTFE / PP / PVC

DutyCorrosive liquids

IndicationLocal flapper

OptionsSwitch / transmitter

Request quote Attach files

Why choose· 01

Built for your duty.

Corrosion-resistant chamber

Non-metallic or lined chamber options are reviewed from the exact chemical and concentration.

Power-free indication

The visual level indication remains available even without instrument power.

Alarm integration

Switches can add high-high, high, low or low-low alarm points where compatible.

Engineer-checked selection

WELK checks range or center-to-center distance, medium, density, pressure, temperature, flange standard, switch points and transmitter need so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Lined magnetic level gauges are used where standard stainless steel wetted parts are not compatible with the chemical medium.

Chemical compatibility must be reviewed for the chamber, float, gasket, flange liner, vent, drain and optional switches.

Anti-Corrosion Lined Magnetic Level Gauge is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Magnetic and local gauge selection depends on center-to-center distance, density, pressure, temperature, flange standard, chamber material, visibility requirement and whether switches or a transmitter are needed.

Specifications· 03

Anti-Corrosion Lined Magnetic Level Gauge specification range.

Parameter	Value
Configuration	Bypass magnetic level gauge
Wetted material	PTFE lined, PP, PVC or selected alloy by medium
Indication	External magnetic flapper or roller
Pressure/temperature	Limited by lining and chamber design
Options	Switches, remote transmitter, vent and drain
RFQ data	Chemical name, concentration, density, pressure, temperature and flange standard
Material options	stainless steel, PVC, lCr18Ni9Ti, polytetrafluoro-Zene
Range / measuring length	0~3000mm
Temperature rating	-25~80°C, (high temperature type 0~450°C optional)
Pressure rating	1MPa, 1.6MPa, 2.5MPa, 4MPa, 6.3MPa

Applications· 04

Where this product works.

Acid storageAlkali tanksWaste chemical tanksCorrosive process vesselsBoilersPressure vesselsChemical storageOil tanks

Application

Chemical Storage Tanks

Chemical and petrochemical storage

Wetted materials & output options.

PTFE PPPVC316LWetted materialProcess connectionCustom rangeExplosion-proof option

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common anti-corrosion lined magnetic level gauge specs.

Configuration Wetted material Indication Pressure/temperature Options RFQ data

FAQ· 06

Anti-Corrosion Lined Magnetic Level Gauge questions.

What dimensions are needed for Anti-Corrosion Lined Magnetic Level Gauge?

Start from range or center-to-center distance, medium, density, pressure, temperature, flange standard, switch points and transmitter need. WELK then confirms the exact model, material and output before quotation.

What is the difference between Anti-Corrosion Lined Magnetic Level Gauge and radar?

Anti-Corrosion Lined Magnetic Level Gauge is selected for its specific duty and limitations. WELK compares it with radar, differential pressure, magnetostrictive transmitter when the process data suggests another technology may be safer.

Can Anti-Corrosion Lined Magnetic Level Gauge be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Anti-Corrosion Lined Magnetic Level Gauge?

Very low density, viscous or dirty media, crystallization and high pressure/temperature require float and chamber review.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need anti-corrosion lined magnetic level gauge? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
