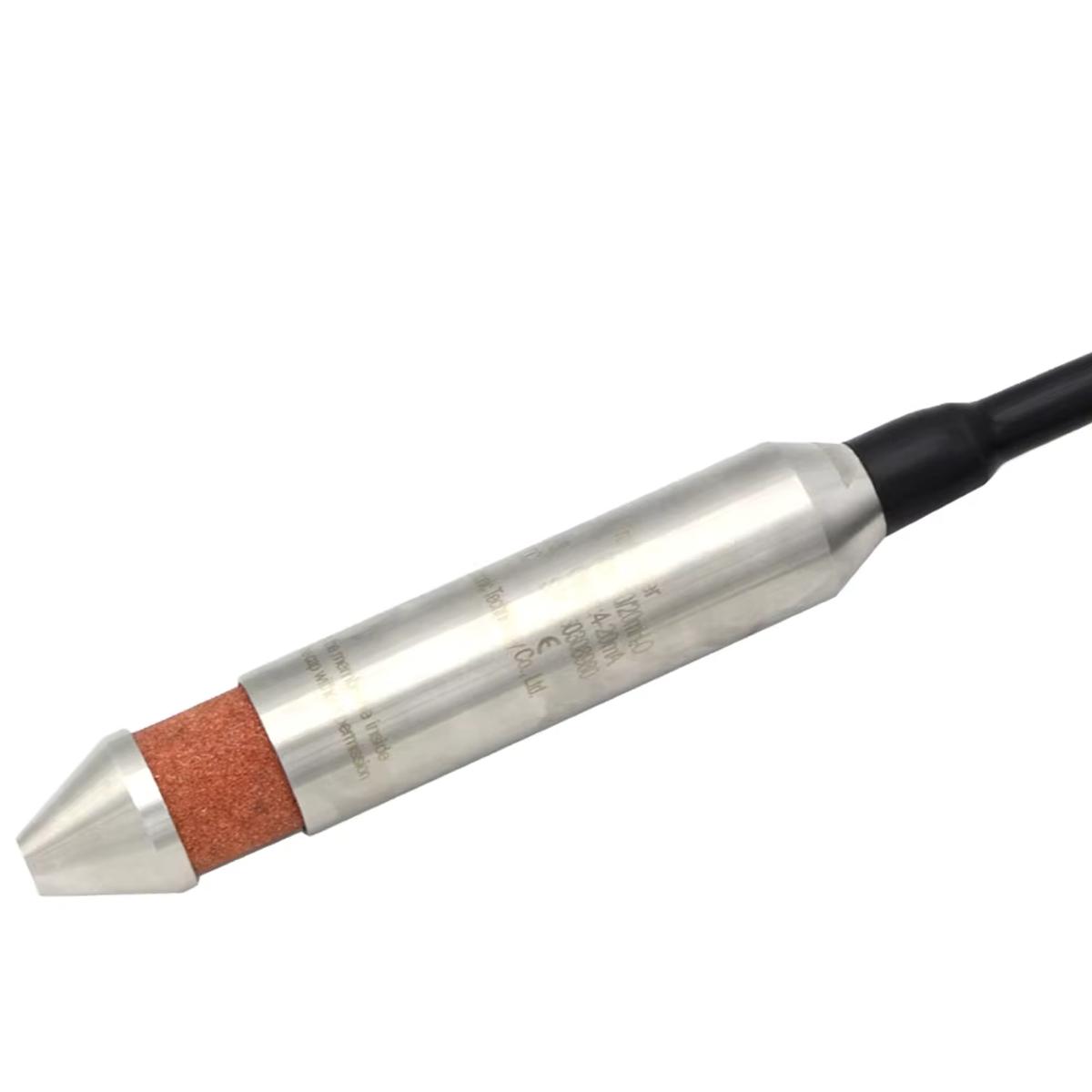

Wastewater Hydrostatic Level Transmitter

Name: Wastewater Hydrostatic Level Transmitter
Brand: WELK Level

Submersible level transmitter for wastewater lift stations, sumps and tanks with fouling-risk review.

MediaWastewater / sludge review

ProtectionIP68 class

Output4-20 mA

CableVented / protected

Request quote Attach files

Why choose· 01

Built for your duty.

Works below foam

Hydrostatic measurement is often reliable when foam or surface turbulence makes non-contact echoes unstable.

Probe protection

Nose cone, cable sheath and diaphragm style are selected from sludge, grit and cleaning conditions.

Pump control ready

The level signal can feed pump controllers, alarms and telemetry systems.

Engineer-checked selection

WELK checks liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Wastewater hydrostatic transmitters are used in wet wells, sumps and treatment tanks where the probe can be safely suspended or mounted.

The selection review checks solids content, grease, cleaning method, cable protection, lightning exposure and expected buildup.

Wastewater Hydrostatic Level Transmitter is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Pressure-based level selection starts from liquid density, range, cable length or process connection, diaphragm style, material compatibility, output signal and ventilation or remote-seal layout.

Specifications· 03

Wastewater Hydrostatic Level Transmitter specification range.

Parameter	Value
Measuring principle	Submersible hydrostatic pressure
Output	4-20 mA standard
Protection	IP68 submersible construction by model

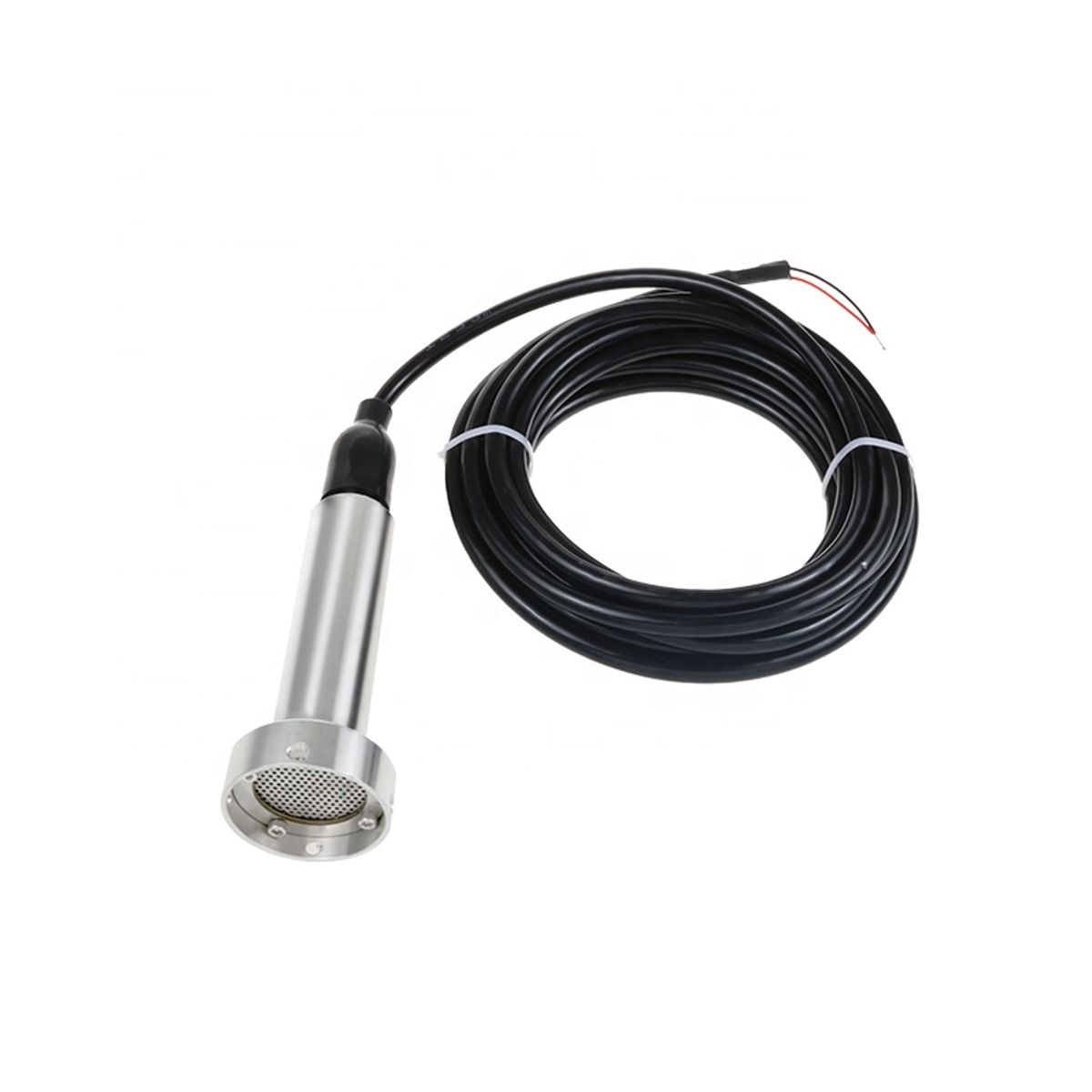

Probe style	Protected diaphragm or nose cone by application
Cable	Vented cable with sheath selected for wastewater duty
RFQ data	Wet well depth, sludge/grease condition, cable route and controller input
Material options	1Cr18Ni9Ti stainless steel
Output signal	4~20mA 0~5Vdc 1~5Vdc 0~10Vdc
Ingress protection	IP68
Pressure rating	embedded type

Applications· 04

Where this product works.

Lift stationsWet wellsSewage tanksSludge sumpsWater tanksWellsReservoirsWastewater sumps

Application

Water & Wastewater Level

Water utilities and wastewater plants

Wetted materials & output options.

316LAnti-corrosion CableArmored CableCustom rangeWetted materialMounting bracket

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common wastewater hydrostatic level transmitter specs.

Measuring principle Output Protection Probe style Cable RFQ data

FAQ· 06

Wastewater Hydrostatic Level Transmitter questions.

How is the measuring range selected for Wastewater Hydrostatic Level Transmitter?

Start from liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement. WELK then confirms the exact model, material and output before quotation.

What is the difference between Wastewater Hydrostatic Level Transmitter and radar?

Wastewater Hydrostatic Level Transmitter is selected for its specific duty and limitations. WELK compares it with radar, ultrasonic, magnetic gauge when the process data suggests another technology may be safer.

Can Wastewater Hydrostatic Level Transmitter be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Wastewater Hydrostatic Level Transmitter?

Density changes, coating, sediment, viscous media, vacuum, crystallization and blocked impulse lines can affect level calculation.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need wastewater hydrostatic level transmitter? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
