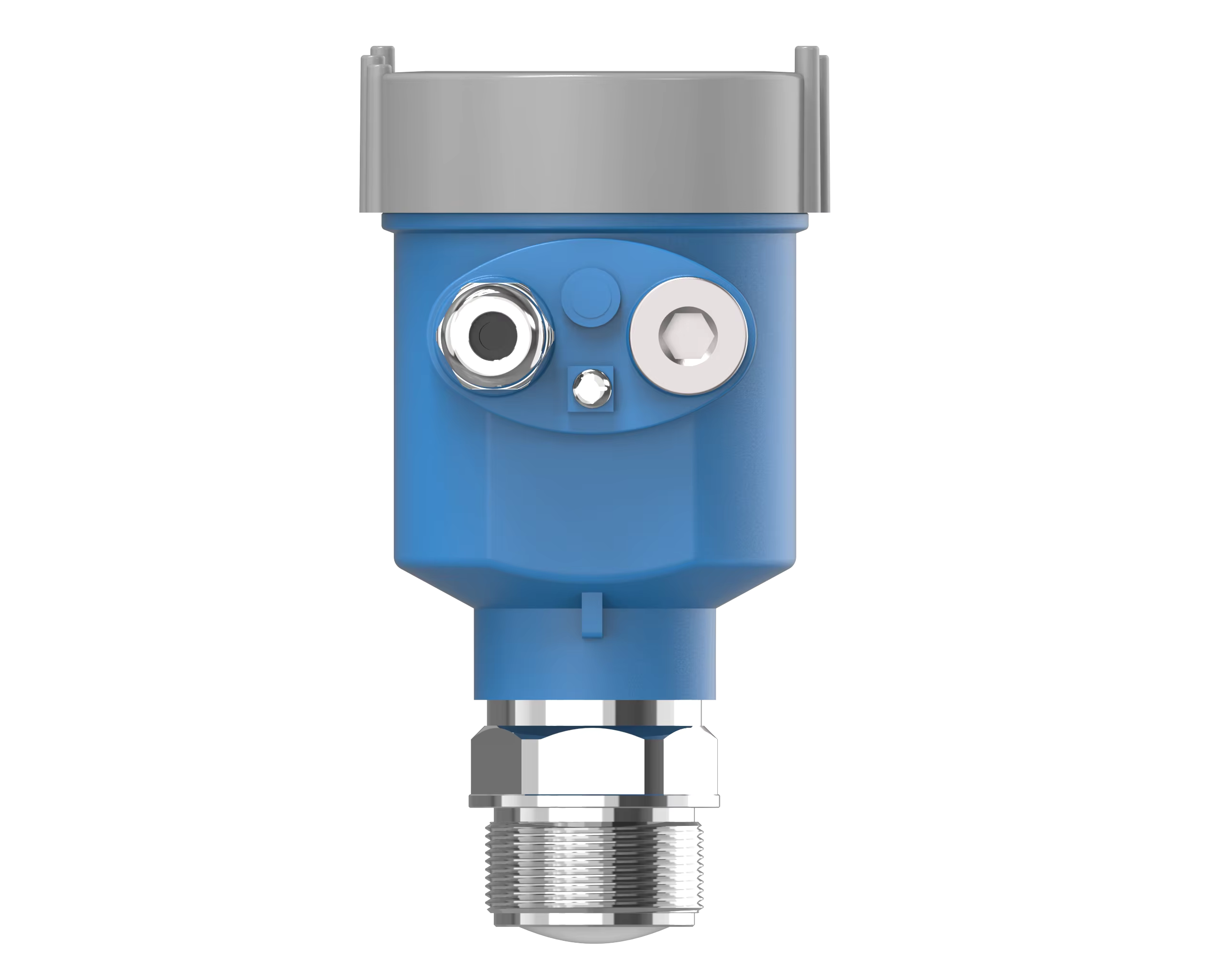

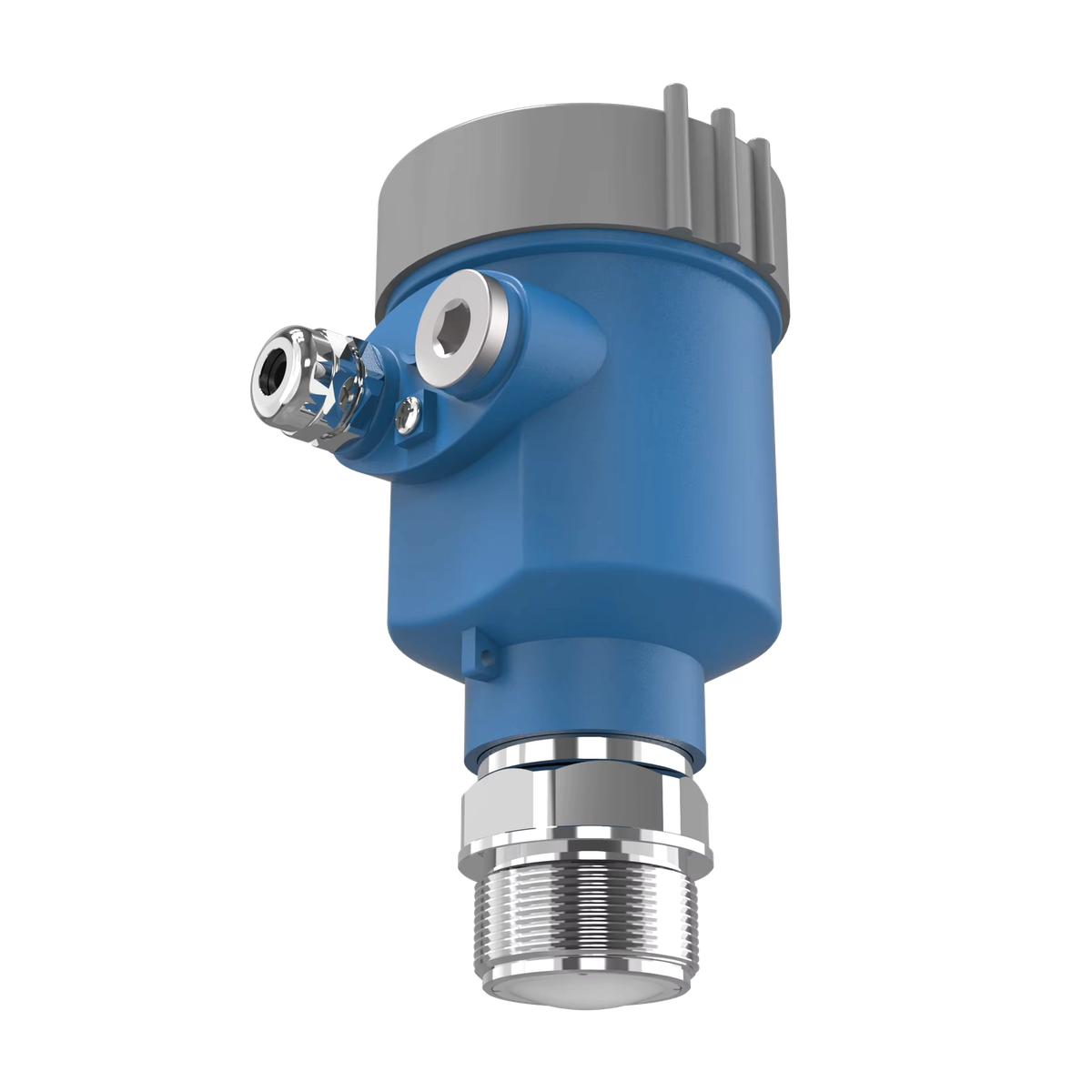

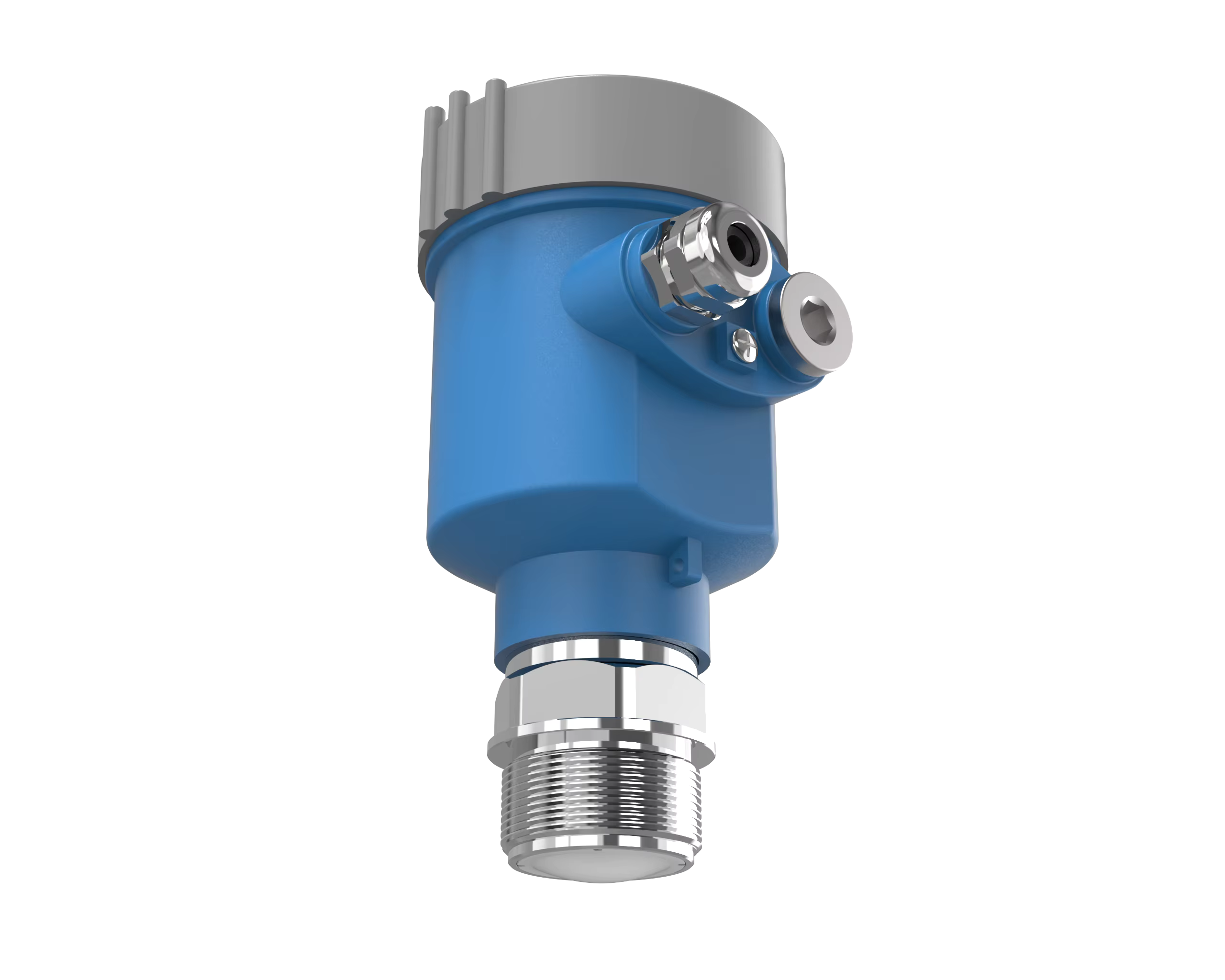

Radar Level Meter for Corrosive Liquids

Name: Radar Level Meter for Corrosive Liquids
Brand: WELK Level

Non-contact radar level meter selected for acid, alkali, solvent and chemical tanks with corrosion-resistant wetted/exposed parts.

MediaAcid / alkali / solvent

Wetted partsPTFE / PVDF / 316L by model

Output4-20 mA / HART / RS-485

OptionsEx / high temp review

Request quote Attach files

Why choose· 01

Built for your duty.

Chemical-tank keyword coverage

Buyers often search anti-corrosion or chemical radar separately from general 80 GHz radar.

Non-contact advantage

Radar keeps the sensing electronics above the liquid and reduces exposure compared with immersed probes.

Material selection first

PTFE, PVDF, PP, 316L or lined connection options are selected from chemical name, concentration and temperature.

Engineer-checked selection

WELK checks medium, tank/silo height, nozzle drawing, measuring range, pressure, temperature, output signal and certificate requirement so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Corrosive-liquid radar is a product family for acid, alkali, solvent and chemical tanks where wetted material compatibility matters as much as measurement range.

WELK confirms chemical name, concentration, vapor, temperature, tank material, nozzle and hazardous-area classification before recommending the final configuration.

Radar Level Meter for Corrosive Liquids is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Radar selection starts from medium dielectric, measuring distance, nozzle size, vapor/foam/dust condition, pressure, temperature and whether the antenna needs purge, aiming or hazardous-area approval.

For acids, alkalis and solvents, the antenna face and process seal are more important than headline range.

Specifications· 03

Radar Level Meter for Corrosive Liquids specification range.

Parameter	Value
Measuring principle	Non-contact FMCW radar
Range class	Selected from tank height and dielectric condition
Exposed/wetted materials	PTFE, PVDF, PP, 316L or lined parts by medium
Process connection	Thread or flange by tank standard
Output	4-20 mA, HART or RS-485 by transmitter
RFQ data	Chemical name, concentration, temperature, vapor, tank height, nozzle and certificate need
Range / measuring length	80GHz
Accuracy class	±0.1%
Material options	Aluminium Alloy
Connection / mounting	thread

Applications· 04

Where this product works.

Acid tanksAlkali tanksSolvent storageChemical dosing tanksCorrosive wastewaterStorage tanksProcess vesselsBulk solids

Application

Chemical Storage Tanks

Chemical and petrochemical storage

Wetted materials & output options.

PTFEPVDFPP 316LCustom rangeProcess connectionWetted materialExplosion-proof option

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common radar level meter for corrosive liquids specs.

Measuring principle Range class Exposed/wetted materials Process connection Output RFQ data

FAQ· 06

Radar Level Meter for Corrosive Liquids questions.

How do I select Radar Level Meter for Corrosive Liquids?

Start from medium, tank/silo height, nozzle drawing, measuring range, pressure, temperature, output signal and certificate requirement. WELK then confirms the exact model, material and output before quotation.

What is the difference between Radar Level Meter for Corrosive Liquids and ultrasonic?

Radar Level Meter for Corrosive Liquids is selected for its specific duty and limitations. WELK compares it with ultrasonic, hydrostatic, guided wave radar when the process data suggests another technology may be safer.

Can Radar Level Meter for Corrosive Liquids be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Radar Level Meter for Corrosive Liquids?

For acids, alkalis and solvents, the antenna face and process seal are more important than headline range.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need radar level meter for corrosive liquids? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
