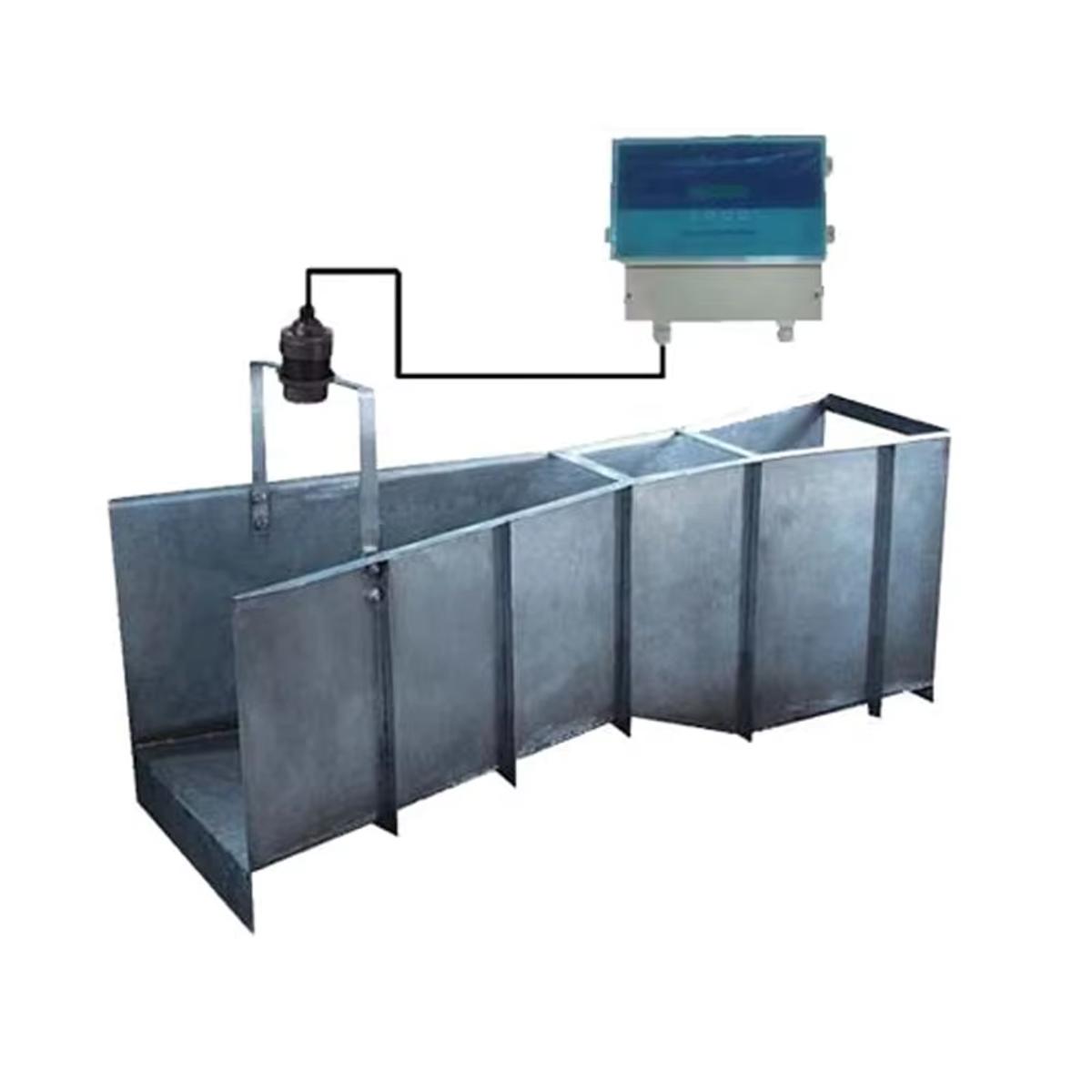

Split Ultrasonic Level Meter with Remote Display

Name: Split Ultrasonic Level Meter with Remote Display
Brand: WELK Level

Separated sensor and wall-mounted display/controller for tanks, pits and hard-to-access mounting points.

Range class5-60 m

DisplayRemote wall-mounted

Output4-20 mA / RS-485 / relay

UsePits and tanks

Request quote Attach files

Why choose· 01

Built for your duty.

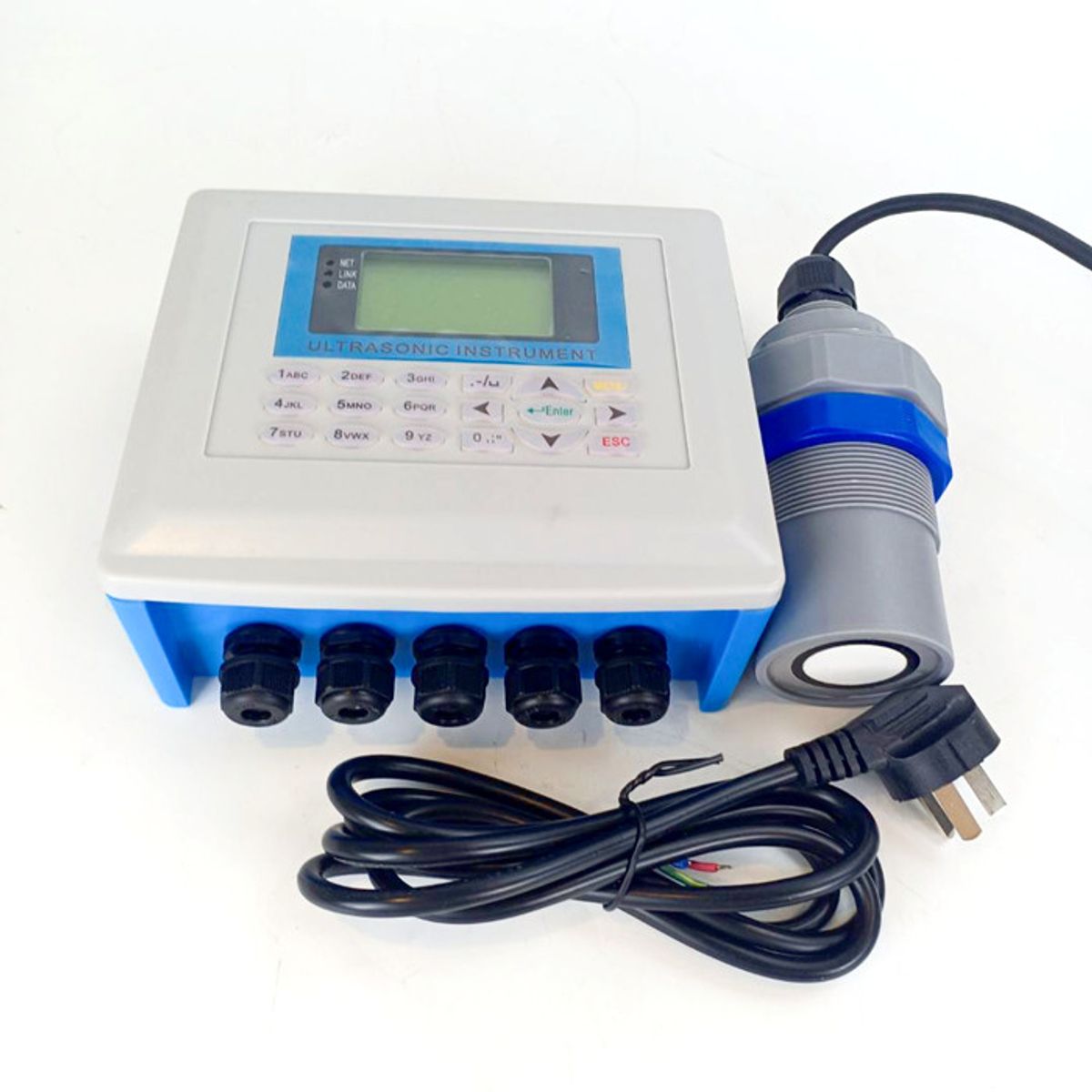

Sensor and display separated

The transducer can stay over the tank while the display/controller is installed at eye level or in a cabinet.

Longer range choices

supplier catalog listings commonly separate split models for 20 m, 40 m and 60 m class measurements.

Control outputs

Relay outputs can support pump control or high/low alarms in standalone systems.

Engineer-checked selection

WELK checks tank height, maximum level, blind-zone allowance, medium, vapor/foam condition, output signal, power and relay points so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Split ultrasonic meters are useful when the tank top is unsafe, high, humid or inconvenient for operators to read.

Cable length, transducer material, relay logic, power supply and weather protection should be specified at RFQ stage.

Split Ultrasonic Level Meter with Remote Display is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Ultrasonic selection depends on blind zone, tank height, vapor, foam, turbulence, temperature gradient and whether a split display, relay output or corrosion-resistant sensor face is needed.

Specifications· 03

Split Ultrasonic Level Meter with Remote Display specification range.

Parameter	Value
Measuring principle	Ultrasonic time-of-flight
Range class	5 m, 10 m, 20 m, 40 m or 60 m by sensor
Display	Remote wall-mounted display/controller
Output	4-20 mA, RS-485, relay or RS-232 by model
Cable	Sensor cable length selected by installation
RFQ data	Tank height, blind zone, cable length, power, relay points and enclosure
Range / measuring length	2m,5m,8m,10m
Output signal	4-20mA / RS485/232(Modbus)/ 4 relays
Accuracy class	+/-0.2%
Power supply	AC220V or DC12~24V

Applications· 04

Where this product works.

Deep sumpsWastewater tanksChemical pitsPump stationsRemote display panelsOpen tanksSumpsWater and wastewater

Application

Water & Wastewater Level

Water utilities and wastewater plants

Wetted materials & output options.

PTFEPVDFPPStainless SteelCustom rangeMounting bracketWetted materialLogo/Marking

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common split ultrasonic level meter with remote display specs.

Measuring principle Range class Display Output Cable RFQ data

FAQ· 06

Split Ultrasonic Level Meter with Remote Display questions.

How do I select Split Ultrasonic Level Meter with Remote Display?

Start from tank height, maximum level, blind-zone allowance, medium, vapor/foam condition, output signal, power and relay points. WELK then confirms the exact model, material and output before quotation.

What is the difference between Split Ultrasonic Level Meter with Remote Display and radar?

Split Ultrasonic Level Meter with Remote Display is selected for its specific duty and limitations. WELK compares it with radar, hydrostatic, float switch when the process data suggests another technology may be safer.

Can Split Ultrasonic Level Meter with Remote Display be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Split Ultrasonic Level Meter with Remote Display?

Heavy vapor, pressure variation, dense foam, strong turbulence or narrow nozzles can weaken the echo; radar may be safer in those conditions.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need split ultrasonic level meter with remote display? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
