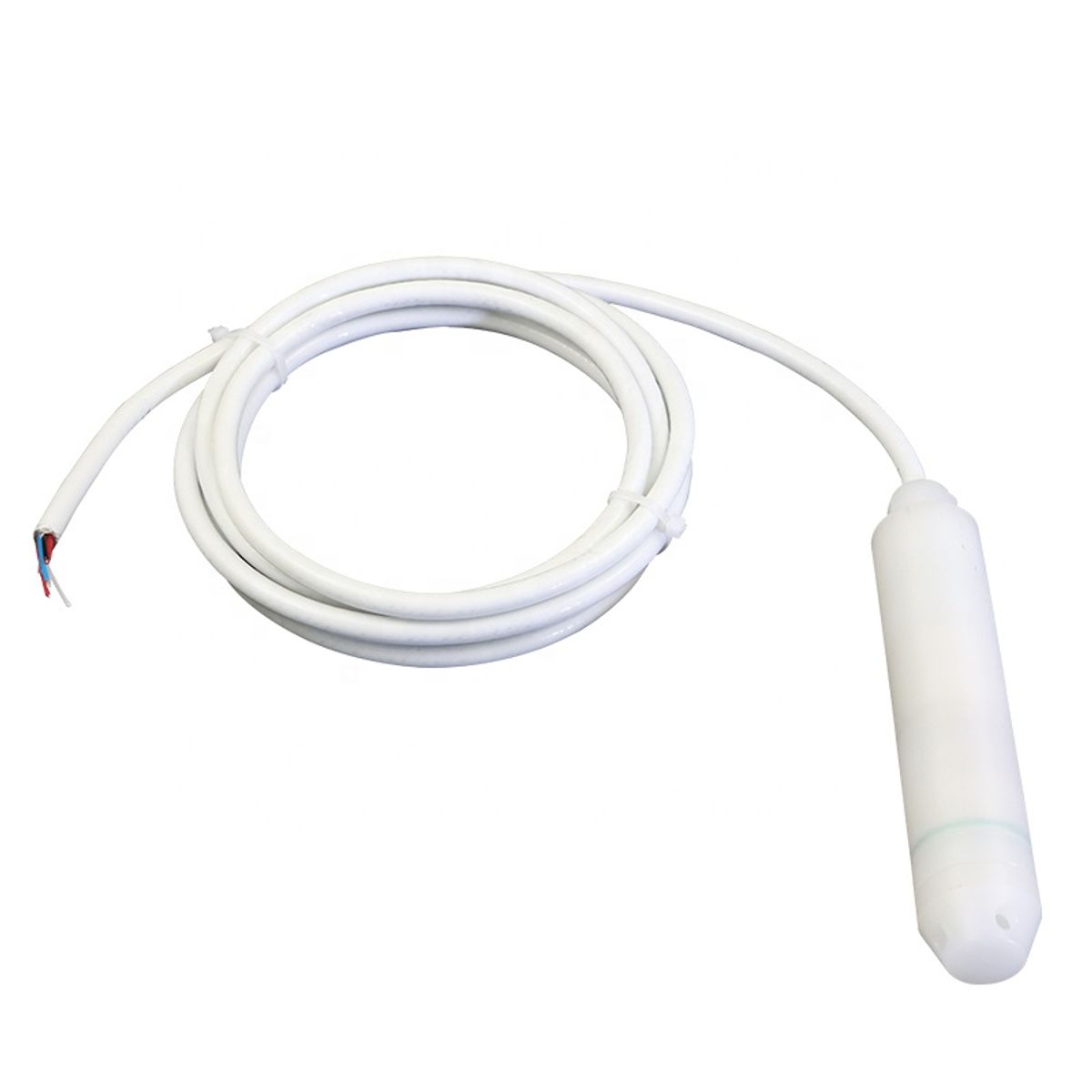

Anti-Corrosion Hydrostatic Level Transmitter

Name: Anti-Corrosion Hydrostatic Level Transmitter
Brand: WELK Level

Hydrostatic level transmitter with corrosion-resistant body, cable and diaphragm options for chemical liquids.

MediaAcid / alkali review

BodyPVDF / PTFE / 316L

Output4-20 mA

CableChemical-resistant

Request quote Attach files

Why choose· 01

Built for your duty.

Chemical compatibility first

Body, diaphragm, seal and cable sheath are selected from chemical name, concentration and temperature.

Submerged measurement

Useful when non-contact sensors are blocked by tank geometry or cannot get a stable echo.

Density correction

Hydrostatic range should be checked if liquid density differs from water.

Engineer-checked selection

WELK checks liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Anti-corrosion hydrostatic transmitters are selected for chemical tanks and wastewater processes where standard stainless steel probes may not last.

Compatibility must be confirmed before quotation; WELK does not promise universal acid or alkali resistance without medium data.

Anti-Corrosion Hydrostatic Level Transmitter is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Pressure-based level selection starts from liquid density, range, cable length or process connection, diaphragm style, material compatibility, output signal and ventilation or remote-seal layout.

Specifications· 03

Anti-Corrosion Hydrostatic Level Transmitter specification range.

Parameter	Value
Measuring principle	Hydrostatic pressure
Wetted materials	PVDF, PTFE, PP, 316L or ceramic by medium
Output	4-20 mA standard
Range	Custom from liquid height and density
Cable	Chemical-resistant vented cable by application
RFQ data	Chemical name, concentration, temperature, density, range and cable length
Power supply	10~36Vdc,10~36Vdc/ac,12~36Vdc/ac
Range / measuring length	0-0.5-10mH2O
Accuracy class	±0.1%F.S, ±0.25%F.S,±0.5%F.S,0.25%,0.5%
Material options	PTFE

Applications· 04

Where this product works.

Acid storageAlkali tanksChemical wastewaterDosing tanksWater tanksWellsReservoirsWastewater sumps

Application

Chemical Storage Tanks

Chemical and petrochemical storage

Wetted materials & output options.

PTFEPVDFPP 316LAnti-corrosion CableCustom rangeWetted materialProcess connection

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common anti-corrosion hydrostatic level transmitter specs.

Measuring principle Wetted materials Output Range Cable RFQ data

FAQ· 06

Anti-Corrosion Hydrostatic Level Transmitter questions.

How is the measuring range selected for Anti-Corrosion Hydrostatic Level Transmitter?

Start from liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement. WELK then confirms the exact model, material and output before quotation.

What is the difference between Anti-Corrosion Hydrostatic Level Transmitter and radar?

Anti-Corrosion Hydrostatic Level Transmitter is selected for its specific duty and limitations. WELK compares it with radar, ultrasonic, magnetic gauge when the process data suggests another technology may be safer.

Can Anti-Corrosion Hydrostatic Level Transmitter be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Anti-Corrosion Hydrostatic Level Transmitter?

Density changes, coating, sediment, viscous media, vacuum, crystallization and blocked impulse lines can affect level calculation.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need anti-corrosion hydrostatic level transmitter? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
