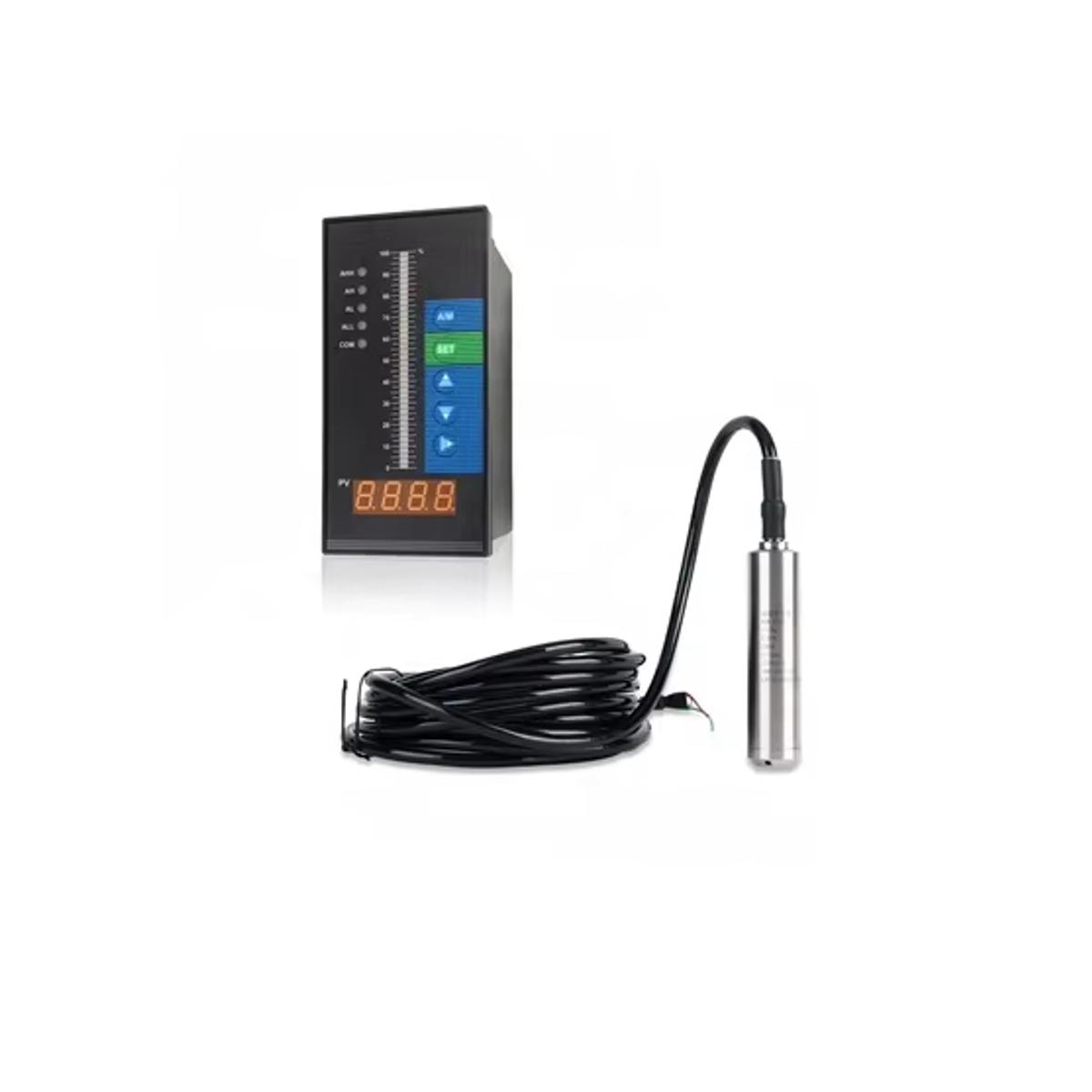

Drinking Water Hydrostatic Level Probe

Name: Drinking Water Hydrostatic Level Probe
Brand: WELK Level

Clean-water submersible level probe for reservoirs, clear-water tanks and municipal water projects.

MediaClean water

Signal4-20 mA / HART option

CellCeramic or 316L

InstallSuspended cable

Request quote Attach files

Why choose· 01

Built for your duty.

Clean-water construction

Material selection focuses on long-term stability, cable compatibility and low-maintenance immersion.

Stable analog signal

4-20 mA output can run long distances to pump cabinets or telemetry systems.

Temperature option review

Integrated temperature measurement can be discussed where the controller requires it.

Engineer-checked selection

WELK checks liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Drinking-water hydrostatic probes are used in municipal reservoirs, clear wells and water towers where a submersible sensor is acceptable.

WELK confirms measuring depth, cable length, lightning protection, cable material and whether a vented reference tube is needed.

Drinking Water Hydrostatic Level Probe is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Pressure-based level selection starts from liquid density, range, cable length or process connection, diaphragm style, material compatibility, output signal and ventilation or remote-seal layout.

Specifications· 03

Drinking Water Hydrostatic Level Probe specification range.

Parameter	Value
Measuring principle	Hydrostatic pressure
Range	Selected by water depth
Output	4-20 mA; HART option by transmitter
Measuring cell	Ceramic or 316L isolated diaphragm by project
Cable	PE, PUR or compatible cable by water quality
RFQ data	Depth, cable length, water quality, output and cabinet distance
Material options	SS316L,Ti etc.
Power supply	24VDC/220VAC
Output signal	Pusle,4-20mA,Hart,Modbus
Temperature rating	-40~80℃

Applications· 04

Where this product works.

Drinking water reservoirsClear wellsWater towersMunicipal pump stationsWater tanksWellsReservoirsWastewater sumps

Application

Wells & Reservoirs

Water wells and reservoirs

Wetted materials & output options.

316LCeramicAnti-corrosion CableCustom rangeWetted materialLogo/Marking

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common drinking water hydrostatic level probe specs.

Measuring principle Range Output Measuring cell Cable RFQ data

FAQ· 06

Drinking Water Hydrostatic Level Probe questions.

How is the measuring range selected for Drinking Water Hydrostatic Level Probe?

Start from liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement. WELK then confirms the exact model, material and output before quotation.

What is the difference between Drinking Water Hydrostatic Level Probe and radar?

Drinking Water Hydrostatic Level Probe is selected for its specific duty and limitations. WELK compares it with radar, ultrasonic, magnetic gauge when the process data suggests another technology may be safer.

Can Drinking Water Hydrostatic Level Probe be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Drinking Water Hydrostatic Level Probe?

Density changes, coating, sediment, viscous media, vacuum, crystallization and blocked impulse lines can affect level calculation.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need drinking water hydrostatic level probe? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
