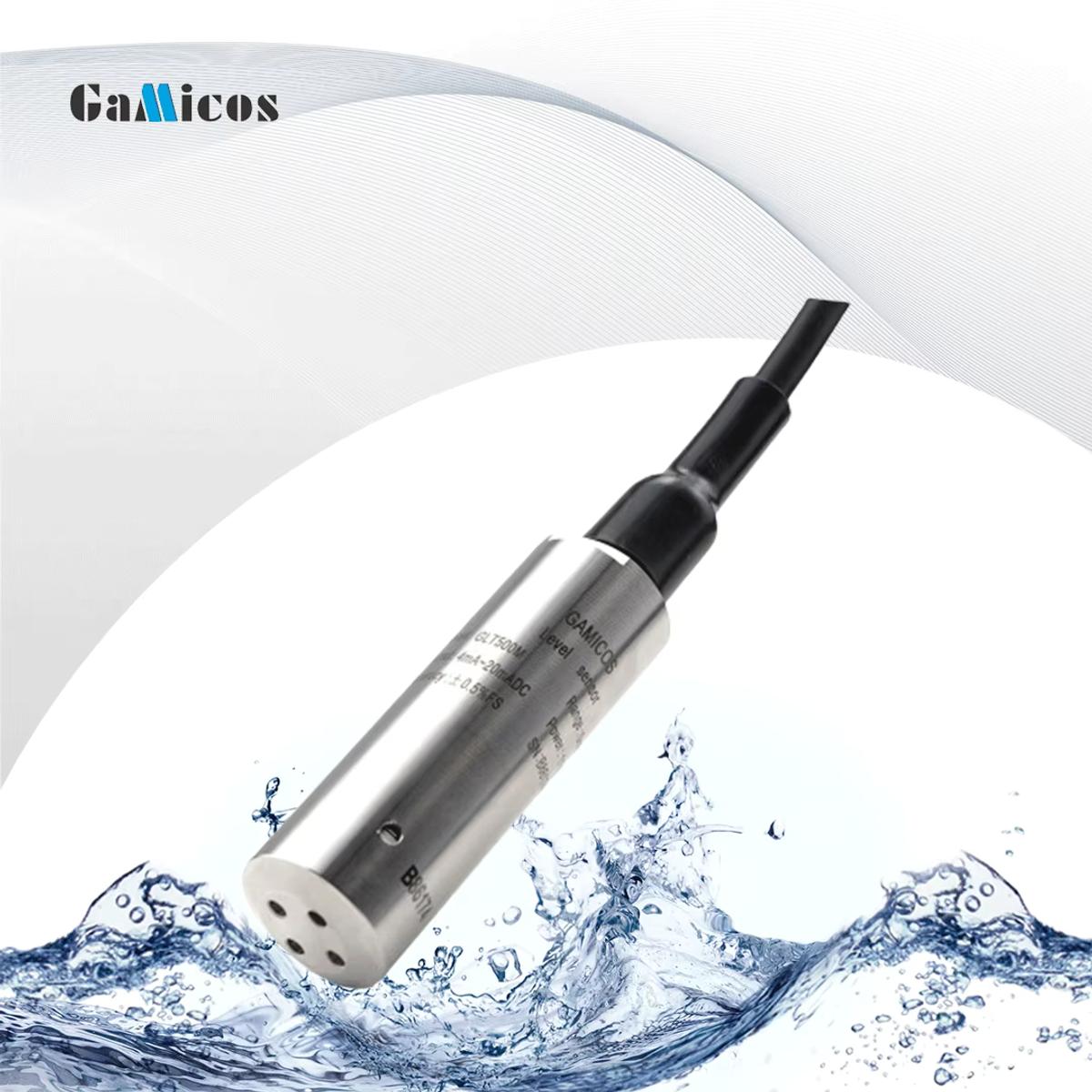

Deep Well Level Transmitter

Name: Deep Well Level Transmitter
Brand: WELK Level

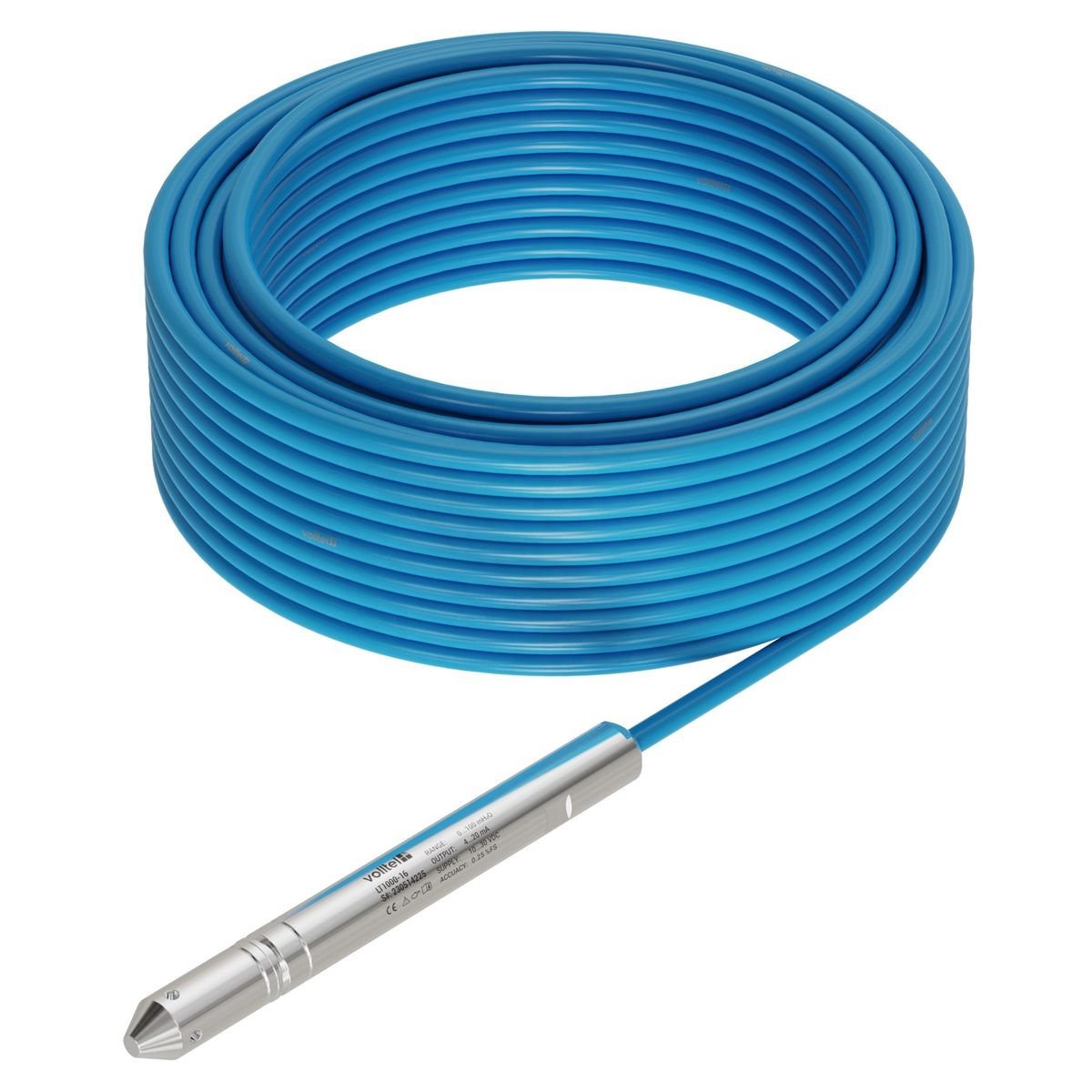

Long-cable hydrostatic level transmitter for boreholes, wells and groundwater monitoring.

DutyDeep wells

RangeBy water column

CableLong cable configured

Output4-20 mA

Request quote Attach files

Why choose· 01

Built for your duty.

Depth-based configuration

Range and cable length are sized from static water level, drawdown and installation depth.

Slim probe option

Probe diameter can be selected for narrow wells and protective stilling tubes.

Telemetry fit

4-20 mA output supports remote level monitoring cabinets and pump control panels.

Engineer-checked selection

WELK checks liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Deep well transmitters are hydrostatic probes lowered into wells or boreholes to measure groundwater or pump well level.

WELK needs well depth, normal level, lowest drawdown, cable length, probe diameter limit and surge/lightning protection requirements.

Deep Well Level Transmitter is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Pressure-based level selection starts from liquid density, range, cable length or process connection, diaphragm style, material compatibility, output signal and ventilation or remote-seal layout.

Specifications· 03

Deep Well Level Transmitter specification range.

Parameter	Value
Measuring principle	Hydrostatic pressure from submersed probe
Range	Selected from water column and drawdown
Cable length	Configured to well depth and panel location
Output	4-20 mA standard
Probe body	Stainless steel or corrosion-resistant construction by water quality
RFQ data	Well ID, depth, static level, pump drawdown and cable length
Output signal	4~20mA 0~5Vdc 1~5Vdc 0~10Vdc
Ingress protection	IP68
Pressure rating	embedded type
Range / measuring length	1~200m H2O

Applications· 04

Where this product works.

BoreholesGroundwater wellsIrrigation wellsPump stationsWater tanksWellsReservoirsWastewater sumps

Application

Wells & Reservoirs

Water wells and reservoirs

Wetted materials & output options.

316LAnti-corrosion CableArmored CableCustom rangeWetted materialLogo/Marking

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common deep well level transmitter specs.

Measuring principle Range Cable length Output Probe body RFQ data

FAQ· 06

Deep Well Level Transmitter questions.

How is the measuring range selected for Deep Well Level Transmitter?

Start from liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement. WELK then confirms the exact model, material and output before quotation.

What is the difference between Deep Well Level Transmitter and radar?

Deep Well Level Transmitter is selected for its specific duty and limitations. WELK compares it with radar, ultrasonic, magnetic gauge when the process data suggests another technology may be safer.

Can Deep Well Level Transmitter be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Deep Well Level Transmitter?

Density changes, coating, sediment, viscous media, vacuum, crystallization and blocked impulse lines can affect level calculation.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need deep well level transmitter? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
