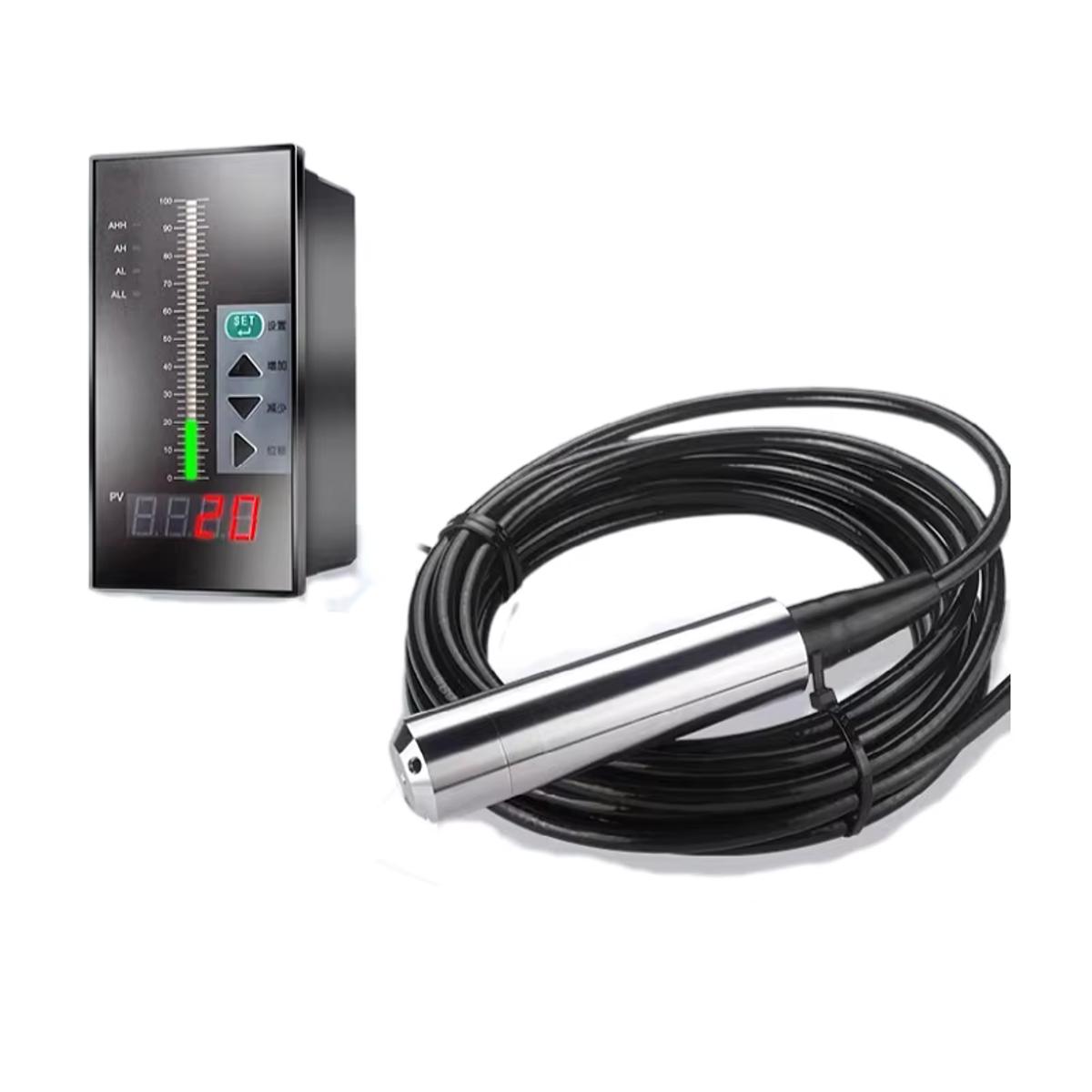

Smart Hydrostatic Level Transmitter with HART

Name: Smart Hydrostatic Level Transmitter with HART
Brand: WELK Level

Smart hydrostatic transmitter with configurable range, HART communication and optional temperature signal.

Output4-20 mA / HART

RangeConfigurable

OptionTemperature

UseWater and process tanks

Request quote Attach files

Why choose· 01

Built for your duty.

Configurable range

Smart electronics allow the measuring span and damping to be adjusted for the application.

Diagnostics and setup

HART communication supports parameter setup and maintenance checks where the host system supports it.

Temperature option

Integrated temperature measurement can be reviewed for water projects and monitoring systems.

Engineer-checked selection

WELK checks liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Smart hydrostatic transmitters are a higher-spec option for projects that need remote setup, diagnostics or HART integration.

The final electronics, accuracy class, hazardous-area option and temperature signal should be selected from the actual control system requirements.

Smart Hydrostatic Level Transmitter with HART is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Pressure-based level selection starts from liquid density, range, cable length or process connection, diaphragm style, material compatibility, output signal and ventilation or remote-seal layout.

Specifications· 03

Smart Hydrostatic Level Transmitter with HART specification range.

Parameter	Value
Measuring principle	Hydrostatic pressure
Output	4-20 mA with HART by selected electronics
Range	Configurable span by pressure sensor range
Accuracy	Project-selected accuracy class
Option	Integrated temperature signal by model
RFQ data	Range, HART need, accuracy, cable length, medium and power supply
Material options	316L stainless steel
Power supply	+12~+36V (default +24V)
Output signal	4~20mA (2 wire)
Temperature rating	-20℃~+85℃

Applications· 04

Where this product works.

Municipal reservoirsIndustrial tanksRemote monitoringSCADA projectsWater tanksWellsReservoirsWastewater sumps

Application

Wells & Reservoirs

Water wells and reservoirs

Wetted materials & output options.

316LCeramicAnti-corrosion CableCustom rangeWetted materialLogo/MarkingExplosion-proof option

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common smart hydrostatic level transmitter with hart specs.

Measuring principle Output Range Accuracy Option RFQ data

FAQ· 06

Smart Hydrostatic Level Transmitter with HART questions.

How is the measuring range selected for Smart Hydrostatic Level Transmitter with HART?

Start from liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement. WELK then confirms the exact model, material and output before quotation.

What is the difference between Smart Hydrostatic Level Transmitter with HART and radar?

Smart Hydrostatic Level Transmitter with HART is selected for its specific duty and limitations. WELK compares it with radar, ultrasonic, magnetic gauge when the process data suggests another technology may be safer.

Can Smart Hydrostatic Level Transmitter with HART be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Smart Hydrostatic Level Transmitter with HART?

Density changes, coating, sediment, viscous media, vacuum, crystallization and blocked impulse lines can affect level calculation.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.
