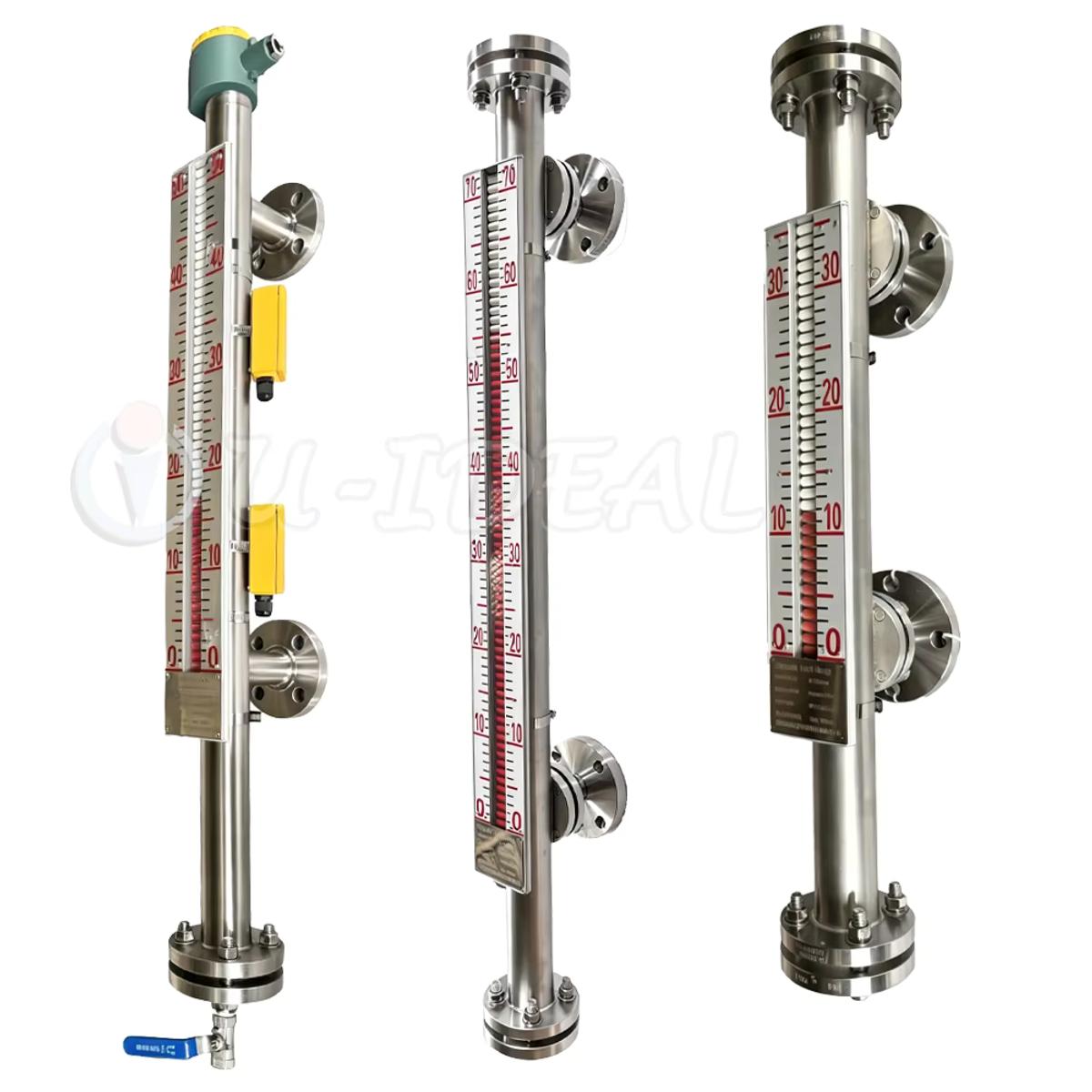

Magnetic Level Gauge with Switches & Transmitter

Name: Magnetic Level Gauge with Switches & Transmitter
Brand: WELK Level

Packaged magnetic gauge solution with local indication, alarm switches and 4-20 mA transmission.

PackageGauge + switch + transmitter

SignalsAlarm / 4-20 mA

IndicationLocal visual

UseProcess vessels

Request quote Attach files

Why choose· 01

Built for your duty.

One coordinated package

The gauge, switches, transmitter, scale and cable entries are selected together for the vessel.

Local and remote level

Operators get local indication while the PLC receives alarm or continuous level signals.

Documented configuration

Switch points, range, flange standard and electrical outputs are documented before production.

Engineer-checked selection

WELK checks range or center-to-center distance, medium, density, pressure, temperature, flange standard, switch points and transmitter need so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

This package combines a magnetic level gauge with magnetic switches and/or a continuous transmitter for projects needing more than visual indication.

WELK confirms switch count, switch type, transmitter signal, junction box, cable entry and hazardous-area requirement at RFQ stage.

Magnetic Level Gauge with Switches & Transmitter is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Magnetic and local gauge selection depends on center-to-center distance, density, pressure, temperature, flange standard, chamber material, visibility requirement and whether switches or a transmitter are needed.

Specifications· 03

Magnetic Level Gauge with Switches & Transmitter specification range.

Parameter	Value
Base instrument	Side-mounted or top-mounted magnetic level gauge
Alarm outputs	One or more magnetic switches by project
Continuous output	4-20 mA transmitter option
Indication	Visual flapper or roller scale
Electrical	Cable gland, junction box and Ex option by order
RFQ data	Range, switch points, signal type, process conditions and wiring standard
Temperature rating	≤200℃
Accuracy class	±5mm,3mm
Material options	SS
Range / measuring length	255-3668 or customizable

Applications· 04

Where this product works.

Boiler auxiliary tanksChemical process vesselsSeparator vesselsTank farm alarmsBoilersPressure vesselsChemical storageOil tanks

Application

Boilers & Process Vessels

Pressure vessels and thermal systems

Wetted materials & output options.

316L304PTFEPVCPPCustom rangeProcess connectionWetted materialExplosion-proof option

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common magnetic level gauge with switches & transmitter specs.

Base instrument Alarm outputs Continuous output Indication Electrical RFQ data

FAQ· 06

Magnetic Level Gauge with Switches & Transmitter questions.

What dimensions are needed for Magnetic Level Gauge with Switches & Transmitter?

Start from range or center-to-center distance, medium, density, pressure, temperature, flange standard, switch points and transmitter need. WELK then confirms the exact model, material and output before quotation.

What is the difference between Magnetic Level Gauge with Switches & Transmitter and radar?

Magnetic Level Gauge with Switches & Transmitter is selected for its specific duty and limitations. WELK compares it with radar, differential pressure, magnetostrictive transmitter when the process data suggests another technology may be safer.

Can Magnetic Level Gauge with Switches & Transmitter be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Magnetic Level Gauge with Switches & Transmitter?

Very low density, viscous or dirty media, crystallization and high pressure/temperature require float and chamber review.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need magnetic level gauge with switches & transmitter? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
