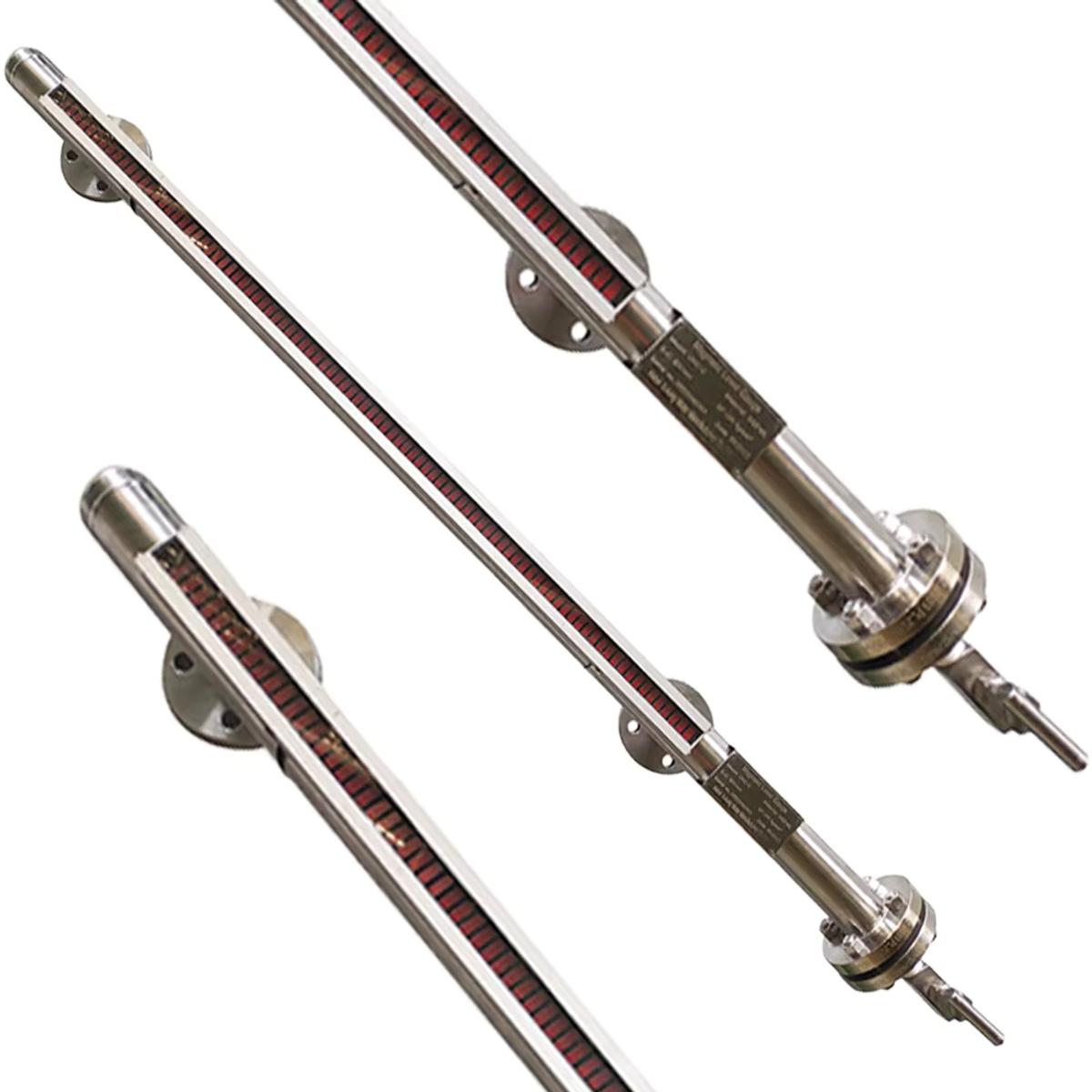

Side-Mounted Magnetic Level Gauge

Name: Side-Mounted Magnetic Level Gauge
Brand: WELK Level

Bypass chamber magnetic level gauge for side-side or side-bottom vessel connections.

InstallSide-mounted bypass

IndicationFlapper / roller

OptionsSwitch / transmitter

UseProcess tanks

Request quote Attach files

Why choose· 01

Built for your duty.

Classic bypass layout

Side-mounted gauges are practical where a vessel has upper and lower nozzle connections.

Visible from floor level

External indicator rails give operators a direct view without opening process equipment.

Flexible nozzle spacing

Center-to-center distance and chamber diameter are engineered from vessel drawings.

Engineer-checked selection

WELK checks range or center-to-center distance, medium, density, pressure, temperature, flange standard, switch points and transmitter need so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Side-mounted magnetic gauges use a bypass chamber connected to the tank, so liquid level in the chamber follows the vessel level.

The float is designed from density, pressure and temperature; the chamber material is selected from corrosion and code requirements.

Side-Mounted Magnetic Level Gauge is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Magnetic and local gauge selection depends on center-to-center distance, density, pressure, temperature, flange standard, chamber material, visibility requirement and whether switches or a transmitter are needed.

Specifications· 03

Side-Mounted Magnetic Level Gauge specification range.

Parameter	Value
Configuration	Side-side or side-bottom bypass chamber
Indication	Red/white flapper, roller or scale
Connection	Flange, thread or weld neck by standard
Options	Alarm switch and remote transmitter
Selection note	Float design depends on density, pressure and temperature
RFQ data	Center-to-center distance, flange rating, medium, density and design conditions
Connection / mounting	Flange,Thread, welding,customized
Display / transmitter	4-20mA ( opotion hart)
Power supply	24VDC
Temperature rating	-40-250℃

Applications· 04

Where this product works.

Storage tanksPressure vesselsChemical reactorsSeparator vesselsBoilersChemical storageOil tanksLocal indication

Application

Boilers & Process Vessels

Pressure vessels and thermal systems

Wetted materials & output options.

316L304PTFEPVCPPCustom rangeProcess connectionWetted materialExplosion-proof option

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common side-mounted magnetic level gauge specs.

Configuration Indication Connection Options Selection note RFQ data

FAQ· 06

Side-Mounted Magnetic Level Gauge questions.

What dimensions are needed for Side-Mounted Magnetic Level Gauge?

Start from range or center-to-center distance, medium, density, pressure, temperature, flange standard, switch points and transmitter need. WELK then confirms the exact model, material and output before quotation.

What is the difference between Side-Mounted Magnetic Level Gauge and radar?

Side-Mounted Magnetic Level Gauge is selected for its specific duty and limitations. WELK compares it with radar, differential pressure, magnetostrictive transmitter when the process data suggests another technology may be safer.

Can Side-Mounted Magnetic Level Gauge be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Side-Mounted Magnetic Level Gauge?

Very low density, viscous or dirty media, crystallization and high pressure/temperature require float and chamber review.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need side-mounted magnetic level gauge? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
