Top-Mounted Magnetic Level Gauge

Name: Top-Mounted Magnetic Level Gauge
Brand: WELK Level

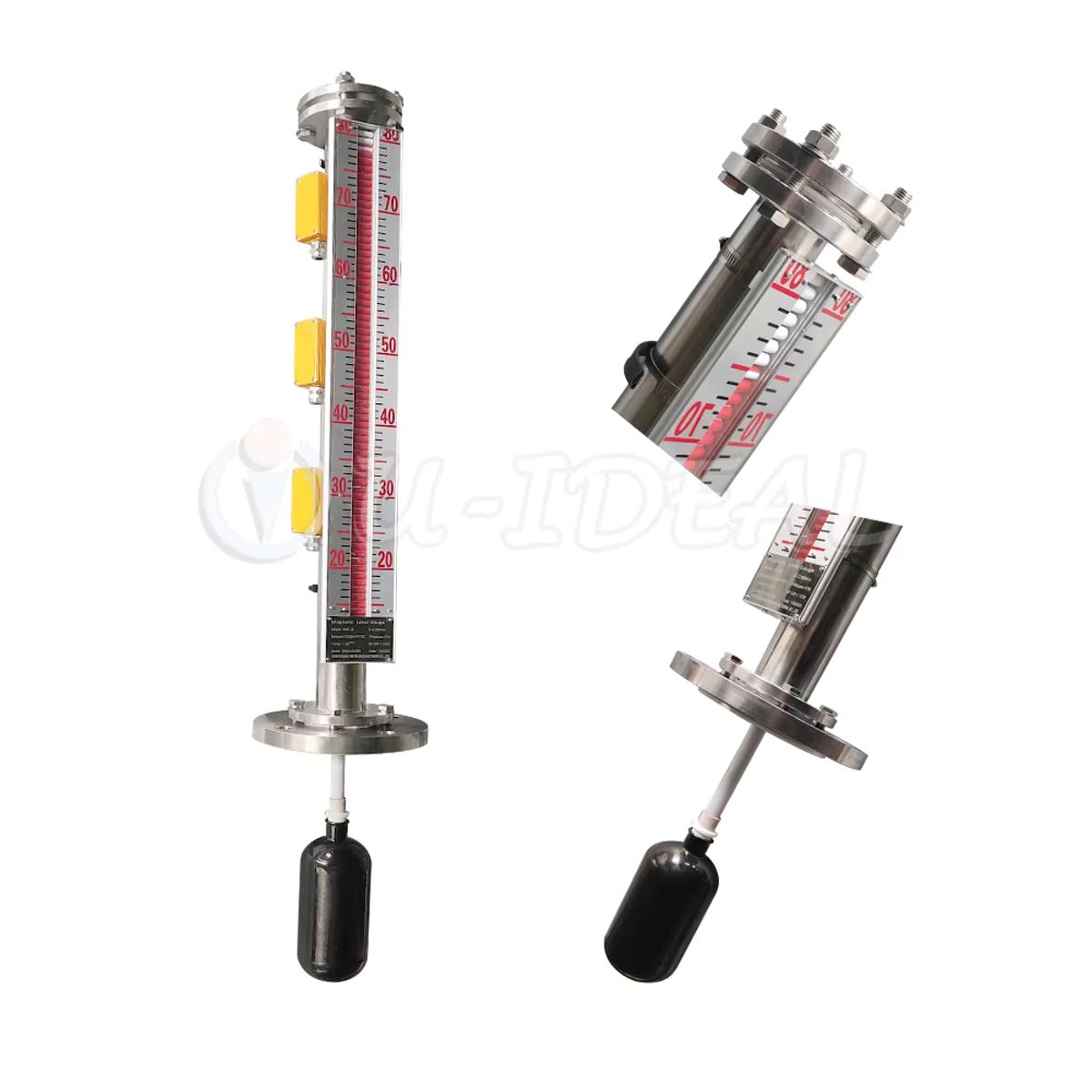

Top-entry magnetic level gauge for tanks without side nozzles or with top-mounted instrument access.

InstallTop-mounted

FloatGuide tube by design

IndicationLocal magnetic

UseUnderground and vertical tanks

Request quote Attach files

Why choose· 01

Built for your duty.

No side nozzle required

Top mounting can be used where side process connections are not available or not preferred.

Tank access friendly

The instrument can be installed from the tank roof or top flange.

Switch options

Magnetic switches can be positioned for high or low alarms when the design allows.

Engineer-checked selection

WELK checks range or center-to-center distance, medium, density, pressure, temperature, flange standard, switch points and transmitter need so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Top-mounted magnetic gauges are selected for tanks where a float and guide structure can be inserted from above.

The required insertion depth, tank internal clearance, density and maintenance access must be confirmed before order.

Top-Mounted Magnetic Level Gauge is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Magnetic and local gauge selection depends on center-to-center distance, density, pressure, temperature, flange standard, chamber material, visibility requirement and whether switches or a transmitter are needed.

Specifications· 03

Top-Mounted Magnetic Level Gauge specification range.

Parameter	Value
Configuration	Top-entry magnetic float gauge
Measurement	Local indication through magnetic coupling
Insertion depth	Custom by tank height and measuring range
Connection	Top flange or thread by project
Options	Alarm switches or transmitter by configuration
RFQ data	Tank height, flange, internal clearance, medium density and pressure
Material options	SS304, SS316, PTFE, PP, PVC, PVDF
Range / measuring length	6000 mm, greater lengths on request
Accuracy class	+/- 5 mm
Pressure rating	<10.0 Mpa for SS & 0.3 Mpa for PP, PVC & PVDF

Applications· 04

Where this product works.

Vertical storage tanksUnderground tanksTop-access vesselsWater and chemical tanksBoilersPressure vesselsChemical storageOil tanks

Magnetic level 316L

Materials & outputs· 05

Wetted materials & output options.

316L304PP PTFECustom rangeProcess connectionWetted material

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common top-mounted magnetic level gauge specs.

Configuration Measurement Insertion depth Connection Options RFQ data

FAQ· 06

Top-Mounted Magnetic Level Gauge questions.

What dimensions are needed for Top-Mounted Magnetic Level Gauge?

Start from range or center-to-center distance, medium, density, pressure, temperature, flange standard, switch points and transmitter need. WELK then confirms the exact model, material and output before quotation.

What is the difference between Top-Mounted Magnetic Level Gauge and radar?

Top-Mounted Magnetic Level Gauge is selected for its specific duty and limitations. WELK compares it with radar, differential pressure, magnetostrictive transmitter when the process data suggests another technology may be safer.

Can Top-Mounted Magnetic Level Gauge be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Top-Mounted Magnetic Level Gauge?

Very low density, viscous or dirty media, crystallization and high pressure/temperature require float and chamber review.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need top-mounted magnetic level gauge? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
