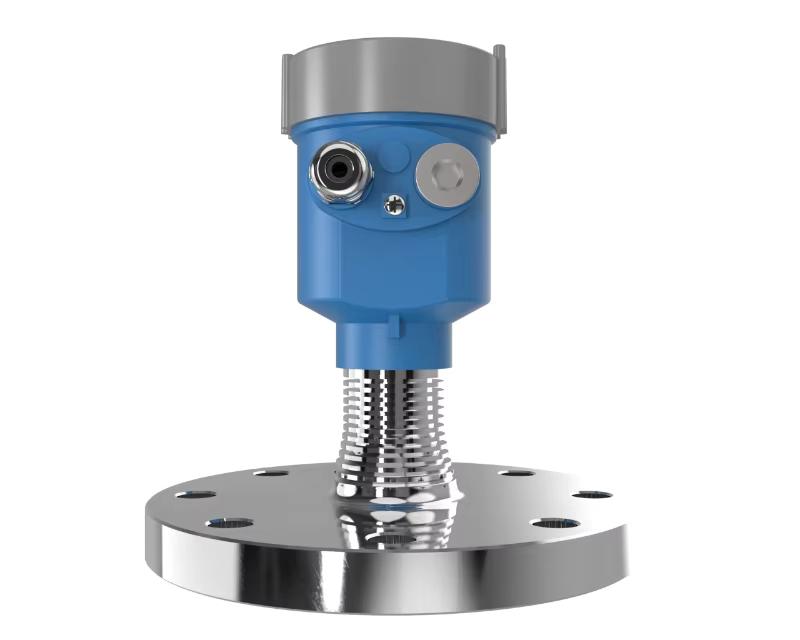

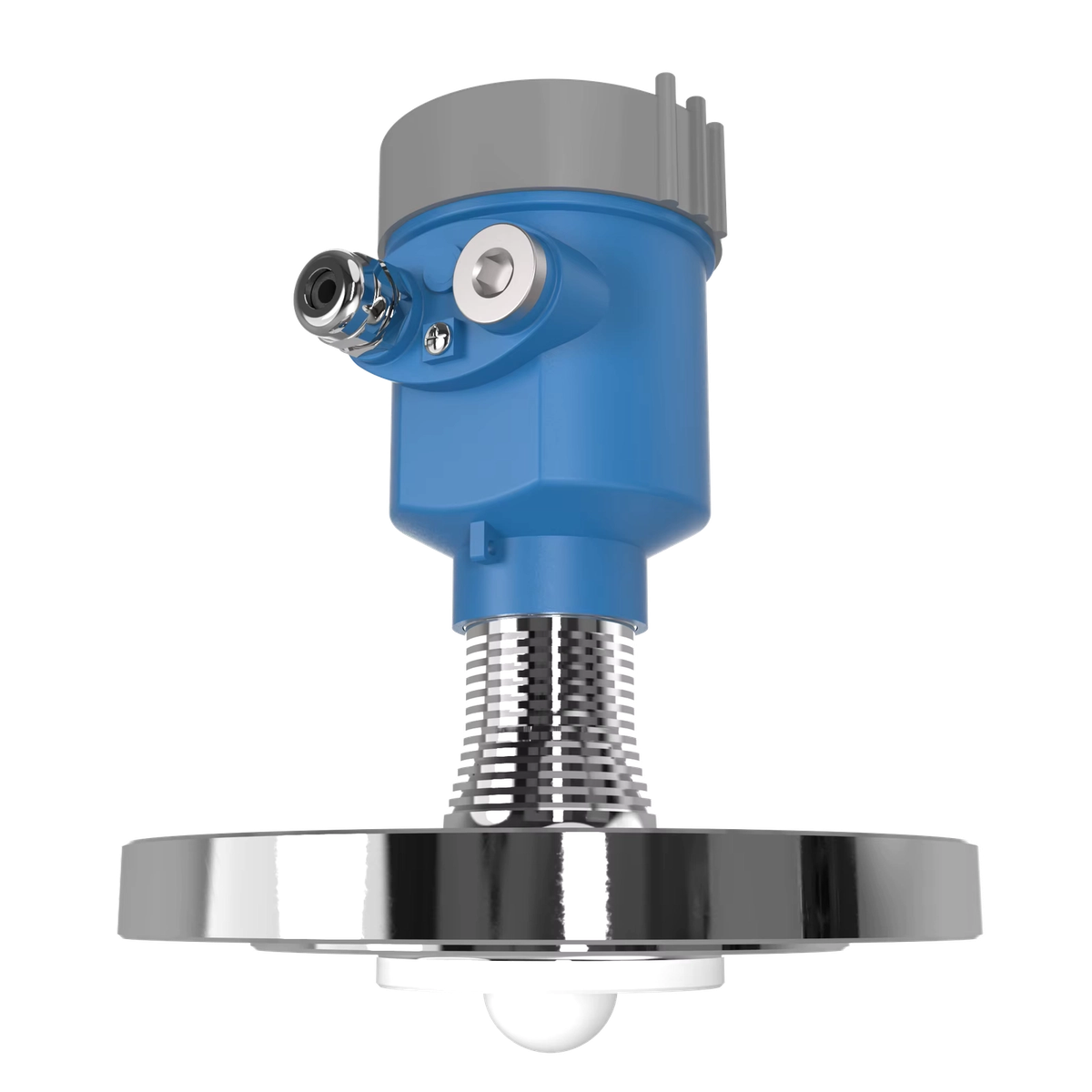

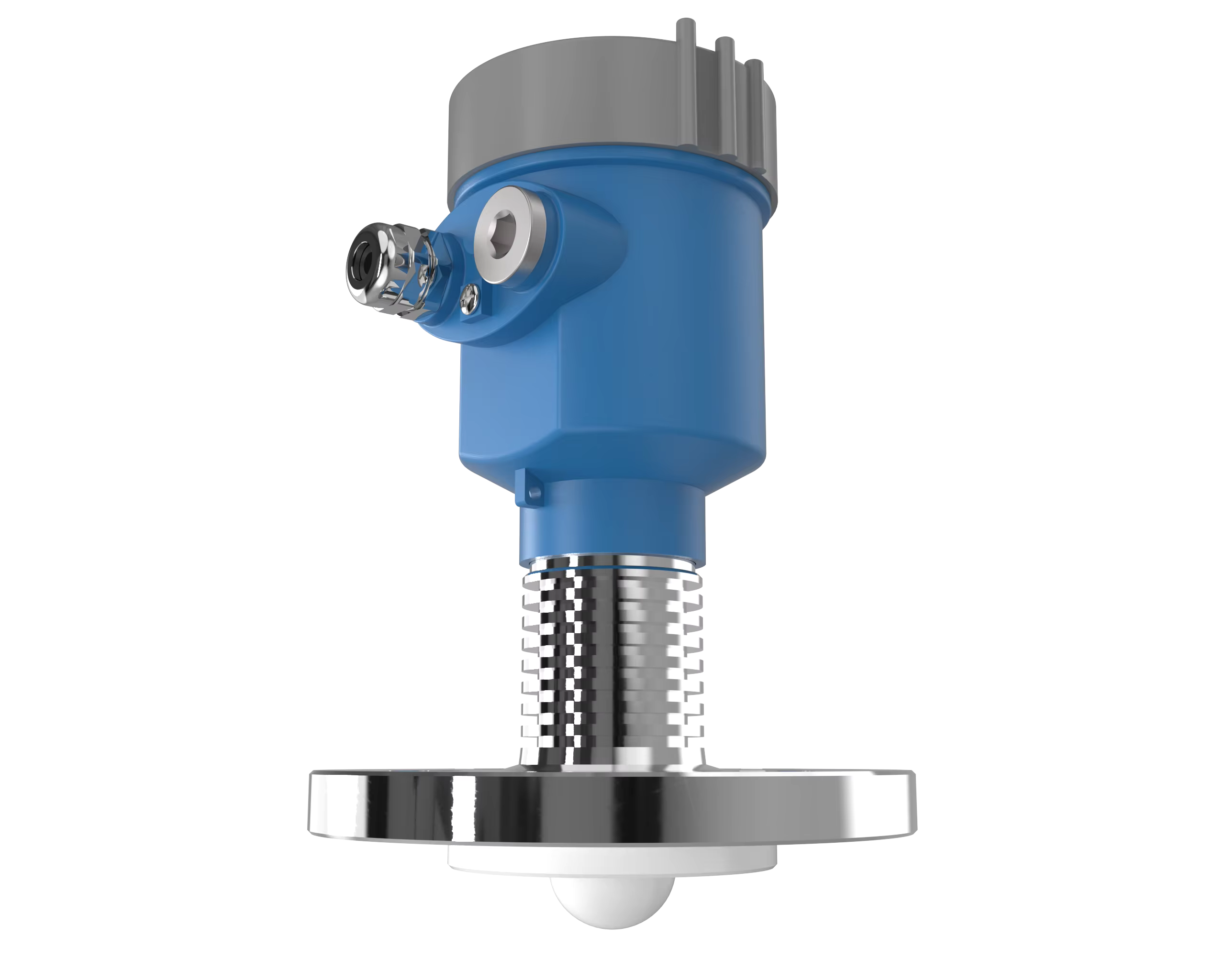

Compact Radar Level Transmitter

Name: Compact Radar Level Transmitter
Brand: WELK Level

Compact non-contact radar transmitter for water, wastewater, utility tanks and small-to-medium process vessels.

Range classUp to 30 m

Output4-20 mA / HART or RS-485

InstallTop mounted

UseWater and utility tanks

Request quote Attach files

Why choose· 01

Built for your duty.

Small installation footprint

Compact housings fit tanks, channels and pump stations where access space is limited.

Radar stability

Radar is not affected by air temperature in the same way as acoustic ultrasonic measurement.

Simple commissioning

Loop-powered or digital-output versions can be matched to common PLC and display systems.

Engineer-checked selection

WELK checks medium, tank/silo height, nozzle drawing, measuring range, pressure, temperature, output signal and certificate requirement so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Compact radar transmitters are normally selected for clean liquid, wastewater and utility tanks where a non-contact instrument is desired but a long-range silo radar is unnecessary.

WELK checks the dead zone, tank height, beam path, mounting thread, enclosure rating and signal protocol before confirming the final model.

Compact Radar Level Transmitter is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Radar selection starts from medium dielectric, measuring distance, nozzle size, vapor/foam/dust condition, pressure, temperature and whether the antenna needs purge, aiming or hazardous-area approval.

Specifications· 03

Compact Radar Level Transmitter specification range.

Parameter	Value
Measuring principle	Non-contact FMCW radar
Range class	Short to medium range, commonly up to 30 m
Process media	Liquids, wastewater and compatible slurries
Output	4-20 mA, HART or RS-485 by version
Power	Two-wire or low-voltage supply by version
Selection note	Foam, turbulence and narrow nozzles should be reviewed before order
Accuracy class	±0.5%
Material options	Aluminium Alloy
Selection checks	Radar selection starts from medium dielectric, measuring distance, nozzle size, vapor/foam/dust condition, pressure, temperature and whether the antenna needs purge, aiming or hazardous-area approval.
Common limitations	Very low dielectric media, heavy buildup on the antenna, severe internal obstructions or unusual nozzle geometry should be reviewed before order.

Applications· 04

Where this product works.

Water tanksWastewater lift stationsOpen basinsIBC or utility tanksStorage tanksProcess vesselsBulk solidsWater level monitoring

Radar level RS-485 Modbus

Materials & outputs· 05

Wetted materials & output options.

PPPVDF316LCast AluminumCustom rangeProcess connectionLogo/Marking

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common compact radar level transmitter specs.

Measuring principle Range class Process media Output Power Selection note

FAQ· 06

Compact Radar Level Transmitter questions.

How do I select Compact Radar Level Transmitter?

Start from medium, tank/silo height, nozzle drawing, measuring range, pressure, temperature, output signal and certificate requirement. WELK then confirms the exact model, material and output before quotation.

What is the difference between Compact Radar Level Transmitter and ultrasonic?

Compact Radar Level Transmitter is selected for its specific duty and limitations. WELK compares it with ultrasonic, hydrostatic, guided wave radar when the process data suggests another technology may be safer.

Can Compact Radar Level Transmitter be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Compact Radar Level Transmitter?

Very low dielectric media, heavy buildup on the antenna, severe internal obstructions or unusual nozzle geometry should be reviewed before order.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need compact radar level transmitter? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
