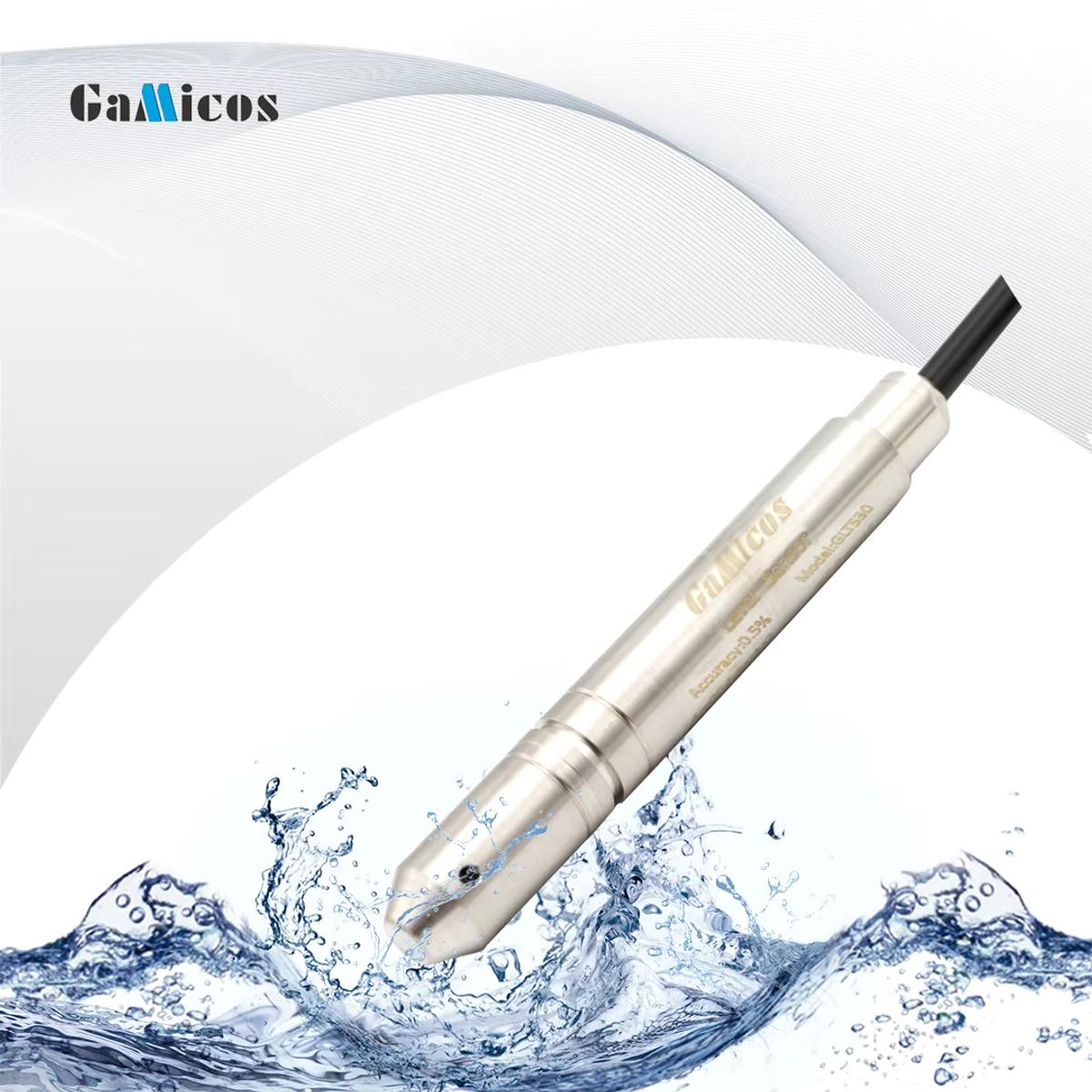

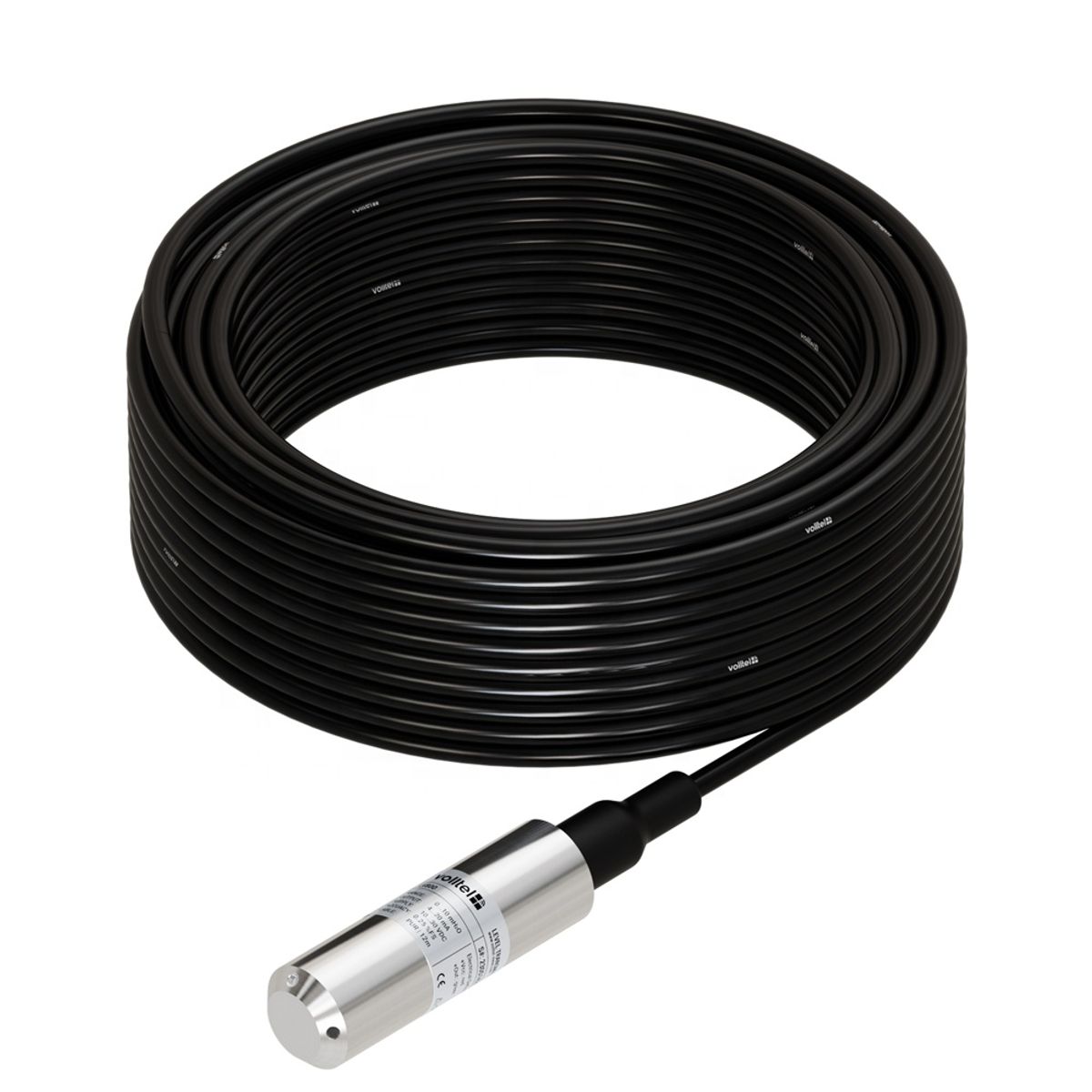

Armored Cable Hydrostatic Level Transmitter

Name: Armored Cable Hydrostatic Level Transmitter
Brand: WELK Level

Hydrostatic level transmitter with armored cable protection for wells, reservoirs and rough installation points.

CableArmored protection

Signal4-20 mA

RangeCustom water column

UseMechanical-risk sites

Request quote Attach files

Why choose· 01

Built for your duty.

Cable protection

Armored cable reduces mechanical damage risk during lowering, retrieval and rough site operation.

Submersible measurement

The probe remains below the liquid surface, avoiding top access and echo-path issues.

Project cable length

Cable length, suspension hardware and junction box position are configured per installation.

Engineer-checked selection

WELK checks liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Armored hydrostatic transmitters are selected where the cable may be pulled, scraped or exposed to mechanical damage.

The armor material, bend radius, grounding, junction box and suspension method should be checked before final quotation.

Armored Cable Hydrostatic Level Transmitter is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Pressure-based level selection starts from liquid density, range, cable length or process connection, diaphragm style, material compatibility, output signal and ventilation or remote-seal layout.

Specifications· 03

Armored Cable Hydrostatic Level Transmitter specification range.

Parameter	Value
Measuring principle	Submersible hydrostatic pressure
Cable	Armored cable with vented signal cable construction by model
Range	Custom range from liquid depth
Output	4-20 mA standard
Accessory	Suspension clamp or junction box by project
RFQ data	Depth, cable route, pulling risk, liquid and cabinet location
Ingress protection	pressure level sensor,submersible level sensor
Material options	1Cr18Ni9Ti stainless steel
Power supply	12~36V DC
Output signal	4~20mA 0~5Vdc 1~5Vdc 0~10Vdc

Applications· 04

Where this product works.

Deep reservoirsIndustrial sumpsWellsRough-site tanksWater tanksReservoirsWastewater sumpsProcess liquid tanks

Application

Wells & Reservoirs

Water wells and reservoirs

Wetted materials & output options.

316LArmored CableAnti-corrosion CableCustom rangeMounting bracketWetted material

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common armored cable hydrostatic level transmitter specs.

Measuring principle Cable Range Output Accessory RFQ data

FAQ· 06

Armored Cable Hydrostatic Level Transmitter questions.

How is the measuring range selected for Armored Cable Hydrostatic Level Transmitter?

Start from liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement. WELK then confirms the exact model, material and output before quotation.

What is the difference between Armored Cable Hydrostatic Level Transmitter and radar?

Armored Cable Hydrostatic Level Transmitter is selected for its specific duty and limitations. WELK compares it with radar, ultrasonic, magnetic gauge when the process data suggests another technology may be safer.

Can Armored Cable Hydrostatic Level Transmitter be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Armored Cable Hydrostatic Level Transmitter?

Density changes, coating, sediment, viscous media, vacuum, crystallization and blocked impulse lines can affect level calculation.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need armored cable hydrostatic level transmitter? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
