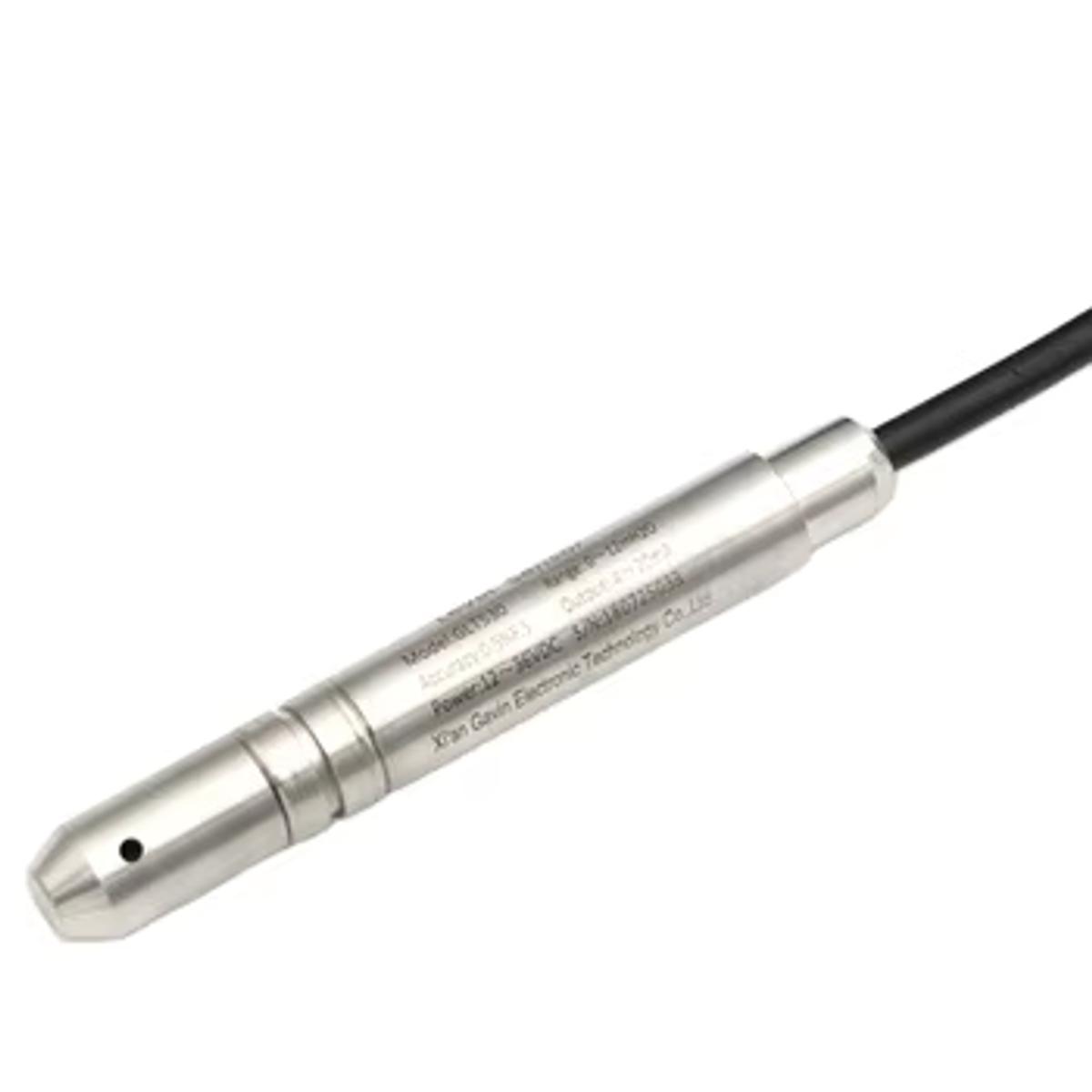

Small Diameter Borehole Level Transmitter

Name: Small Diameter Borehole Level Transmitter
Brand: WELK Level

Slim submersible level transmitter for narrow wells, boreholes and monitoring tubes.

Diameter16-19 mm class

Output4-20 mA

Range0-200 m class

UseBoreholes and wells

Request quote Attach files

Why choose· 01

Built for your duty.

Fits narrow access

Small-diameter probes are useful where standard submersible transmitters cannot pass through the well casing.

Deep well measurement

Range and cable length are selected from water column, static level and pump drawdown.

Simple telemetry signal

4-20 mA output can be connected to pump panels, data loggers or remote telemetry systems.

Engineer-checked selection

WELK checks liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

supplier catalog listings often separate 16 mm and 19 mm borehole sensors because probe diameter is a decisive purchasing filter.

WELK quotes this as a slim hydrostatic probe with diameter, cable length, range and cable material confirmed by the well drawing.

Small Diameter Borehole Level Transmitter is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Pressure-based level selection starts from liquid density, range, cable length or process connection, diaphragm style, material compatibility, output signal and ventilation or remote-seal layout.

Specifications· 03

Small Diameter Borehole Level Transmitter specification range.

Parameter	Value
Measuring principle	Submersible hydrostatic pressure
Probe diameter	16 mm or 19 mm class by model
Range	Selected from water column, commonly up to 200 m class
Output	4-20 mA standard
Cable	Vented cable, anti-corrosion or armored option by site
RFQ data	Borehole ID, water depth, cable length, probe diameter limit and output
Material options	stainless steel
Ingress protection	IP68
Power supply	11V~28V DC
Range / measuring length	0~1mH2O...200mH2O

Applications· 04

Where this product works.

Narrow boreholesGroundwater monitoringDeep wellsObservation tubesWater tanksWellsReservoirsWastewater sumps

Application

Wells & Reservoirs

Water wells and reservoirs

Wetted materials & output options.

316LAnti-corrosion CableArmored CableCustom rangeWetted materialLogo/Marking

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common small diameter borehole level transmitter specs.

Measuring principle Probe diameter Range Output Cable RFQ data

FAQ· 06

Small Diameter Borehole Level Transmitter questions.

How is the measuring range selected for Small Diameter Borehole Level Transmitter?

Start from liquid, density, measuring height, cable length or connection, temperature, pressure, output signal and material requirement. WELK then confirms the exact model, material and output before quotation.

What is the difference between Small Diameter Borehole Level Transmitter and radar?

Small Diameter Borehole Level Transmitter is selected for its specific duty and limitations. WELK compares it with radar, ultrasonic, magnetic gauge when the process data suggests another technology may be safer.

Can Small Diameter Borehole Level Transmitter be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Small Diameter Borehole Level Transmitter?

Density changes, coating, sediment, viscous media, vacuum, crystallization and blocked impulse lines can affect level calculation.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need small diameter borehole level transmitter? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
