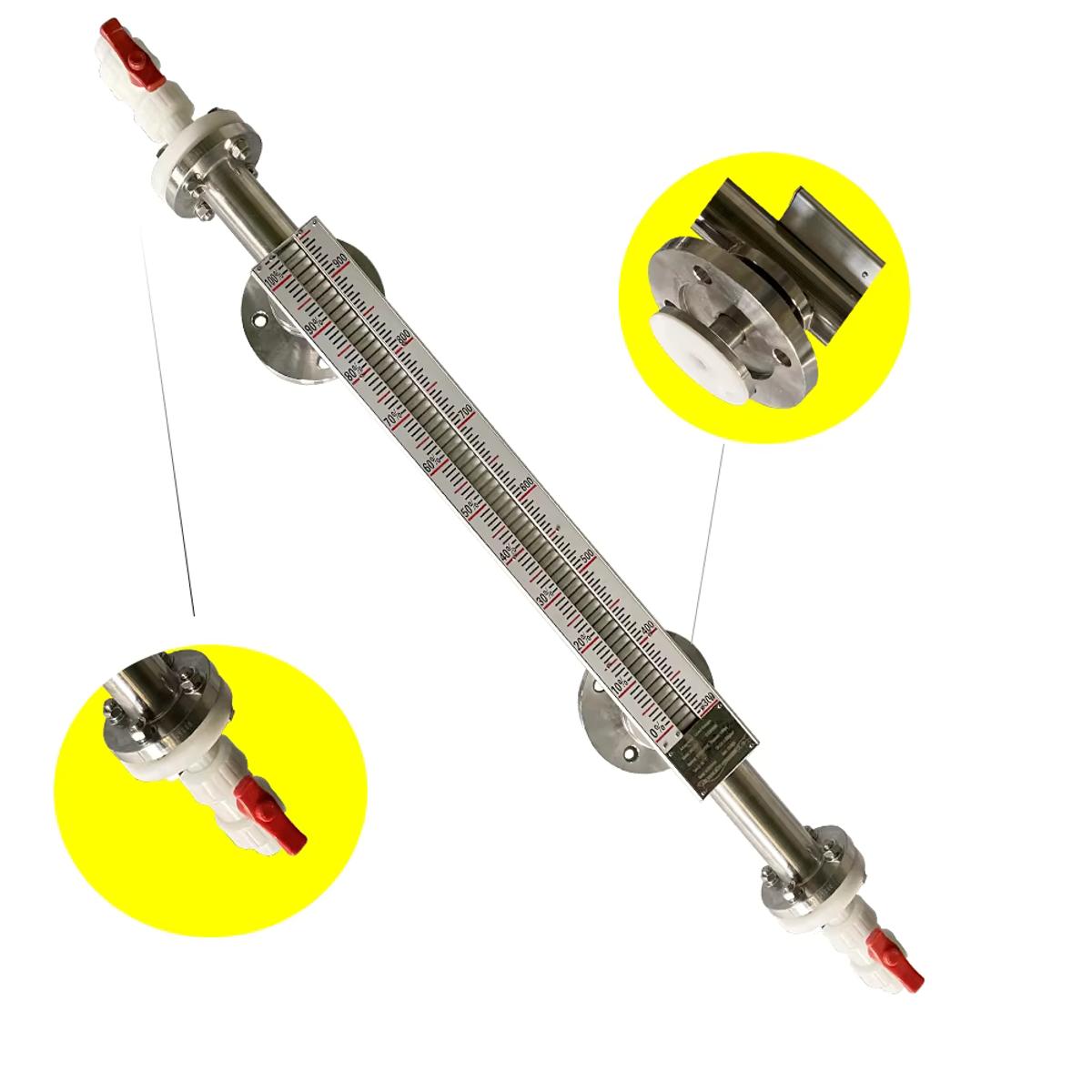

WKD/C Magnetic Level Gauge

Name: WKD/C Magnetic Level Gauge
Brand: WELK Level

Magnetic level gauge for local indication on pressure vessels up to 16 MPa and 350 C.

PressureUp to 16 MPa

TemperatureUp to 350 C

IndicationRed-white flapper

OptionsSwitch / transmitter

Request quote Attach files

Why choose· 01

Built for your duty.

No-power local reading

A magnetic float drives external flappers for clear local indication without power.

High-duty process use

Bypass chamber design suits many pressurized and high-temperature liquid vessels when specified correctly.

Remote signal options

Magnetic switches or 4-20 mA transmitters can be added for alarms and control-room indication.

Engineer-checked selection

WELK checks range or center-to-center distance, medium, density, pressure, temperature, flange standard, switch points and transmitter need so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

WKD/C magnetic level gauges provide continuous visual level indication through magnetic coupling between an internal float and an external indicator.

Correct selection depends on density, pressure, temperature, flange standard, chamber material and whether total level or interface is required.

WKD/C Magnetic Level Gauge is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Magnetic and local gauge selection depends on center-to-center distance, density, pressure, temperature, flange standard, chamber material, visibility requirement and whether switches or a transmitter are needed.

Specifications· 03

WKD/C Magnetic Level Gauge specification range.

Parameter	Value
Pressure	Up to 16 MPa
Temperature	Up to 350 C
Indication	Red-white flapper or roller indicator
Materials	304, 316L, PTFE lined, PVC or PP by medium

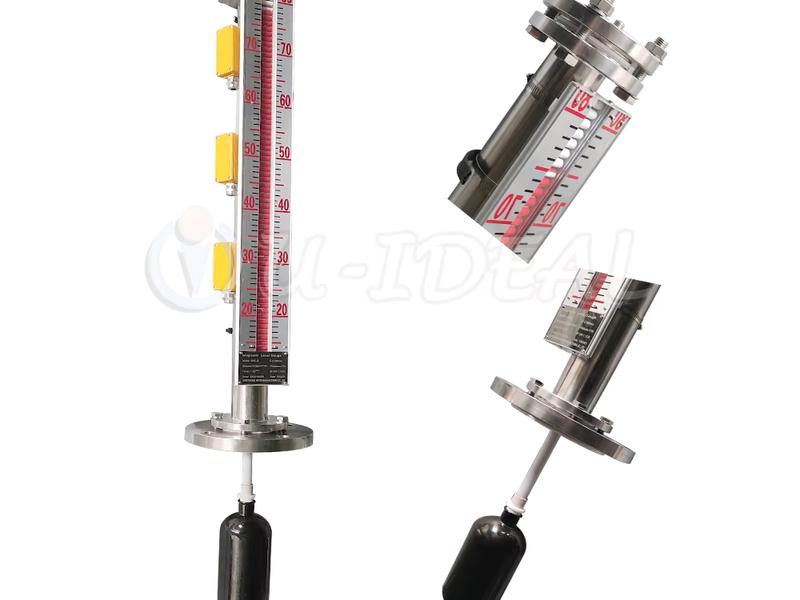

Mounting	Side-mounted or top-mounted configuration
Options	Level switch, 4-20 mA transmitter, drain and vent
Accuracy class	±5mm
Material options	Plastic,stainless steel,PPH,PVC,PP
Selection checks	Magnetic and local gauge selection depends on center-to-center distance, density, pressure, temperature, flange standard, chamber material, visibility requirement and whether switches or a transmitter are needed.
Common limitations	Very low density, viscous or dirty media, crystallization and high pressure/temperature require float and chamber review.

Applications· 04

Where this product works.

Process vesselsPressurized tanksCorrosive liquidsLocal indicationBoiler auxiliary vesselsBoilersPressure vesselsChemical storage

Application

Boilers & Process Vessels

Pressure vessels and thermal systems

Wetted materials & output options.

316L304PTFEPVCPPCustom rangeProcess connectionWetted materialExplosion-proof option

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common wkd/c magnetic level gauge specs.

Pressure Temperature Indication Materials Mounting Options

FAQ· 06

WKD/C Magnetic Level Gauge questions.

What dimensions are needed for WKD/C Magnetic Level Gauge?

Start from range or center-to-center distance, medium, density, pressure, temperature, flange standard, switch points and transmitter need. WELK then confirms the exact model, material and output before quotation.

What is the difference between WKD/C Magnetic Level Gauge and radar?

WKD/C Magnetic Level Gauge is selected for its specific duty and limitations. WELK compares it with radar, differential pressure, magnetostrictive transmitter when the process data suggests another technology may be safer.

Can WKD/C Magnetic Level Gauge be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of WKD/C Magnetic Level Gauge?

Very low density, viscous or dirty media, crystallization and high pressure/temperature require float and chamber review.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need wkd/c magnetic level gauge? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
