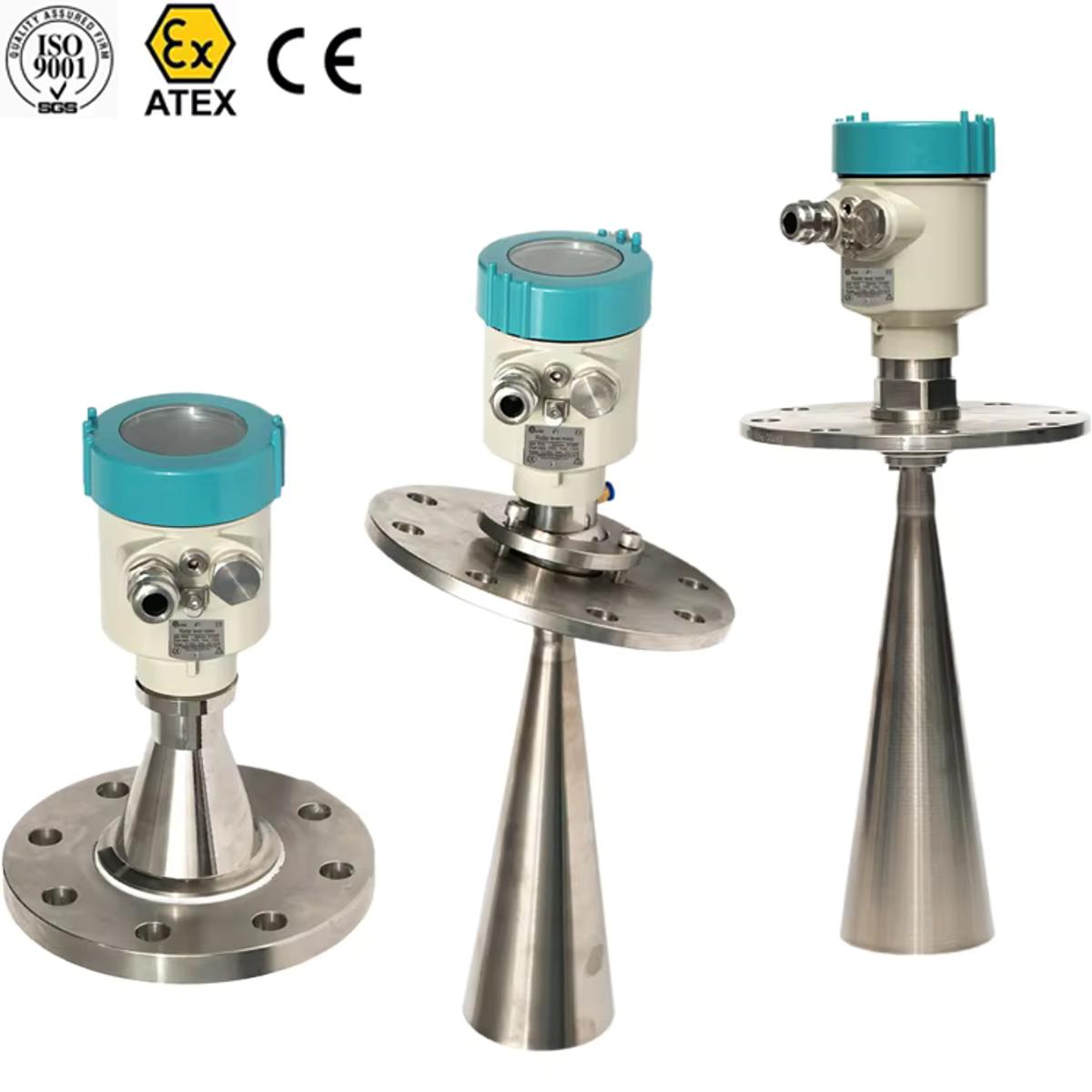

60 GHz Water Level Radar Sensor

Name: 60 GHz Water Level Radar Sensor
Brand: WELK Level

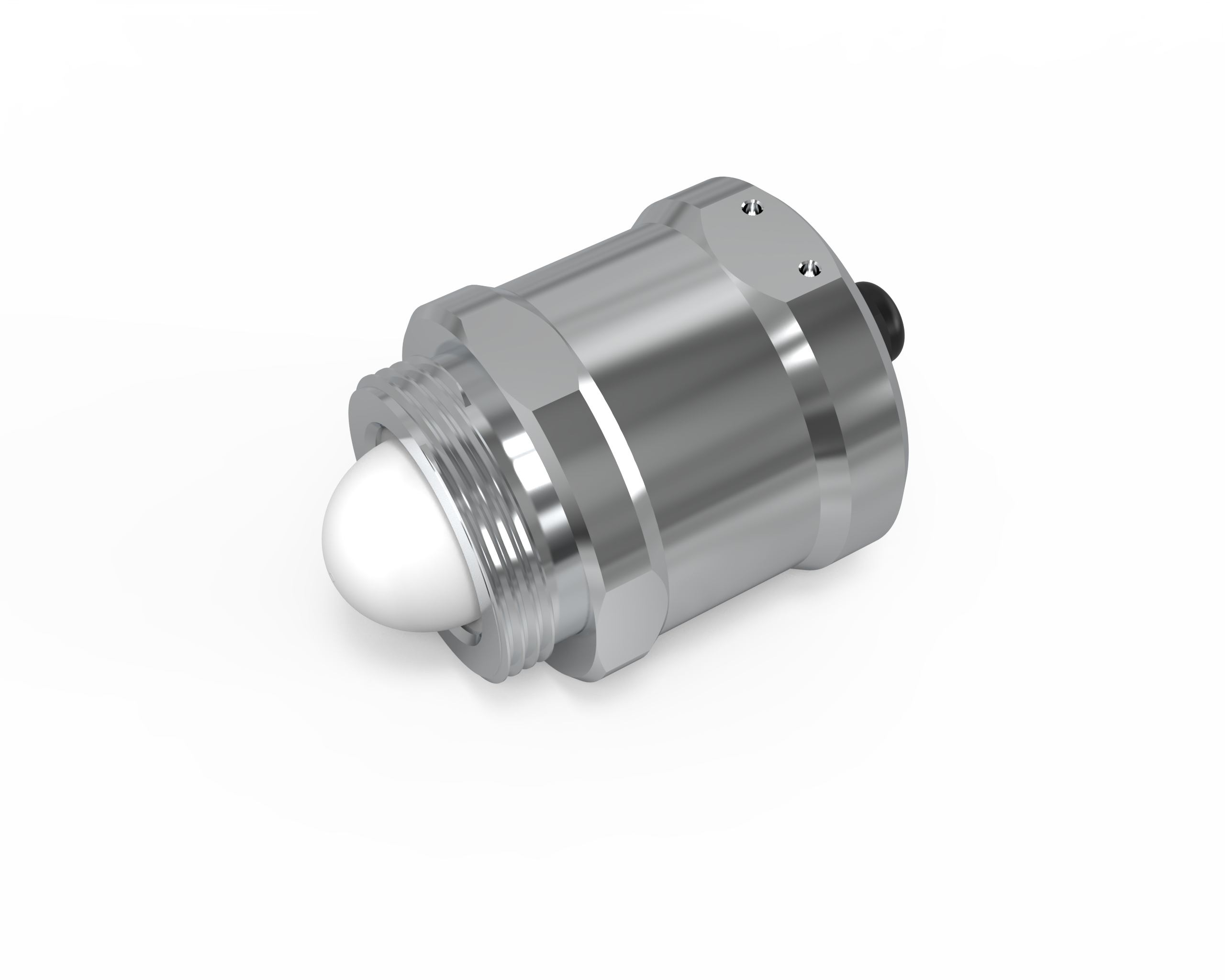

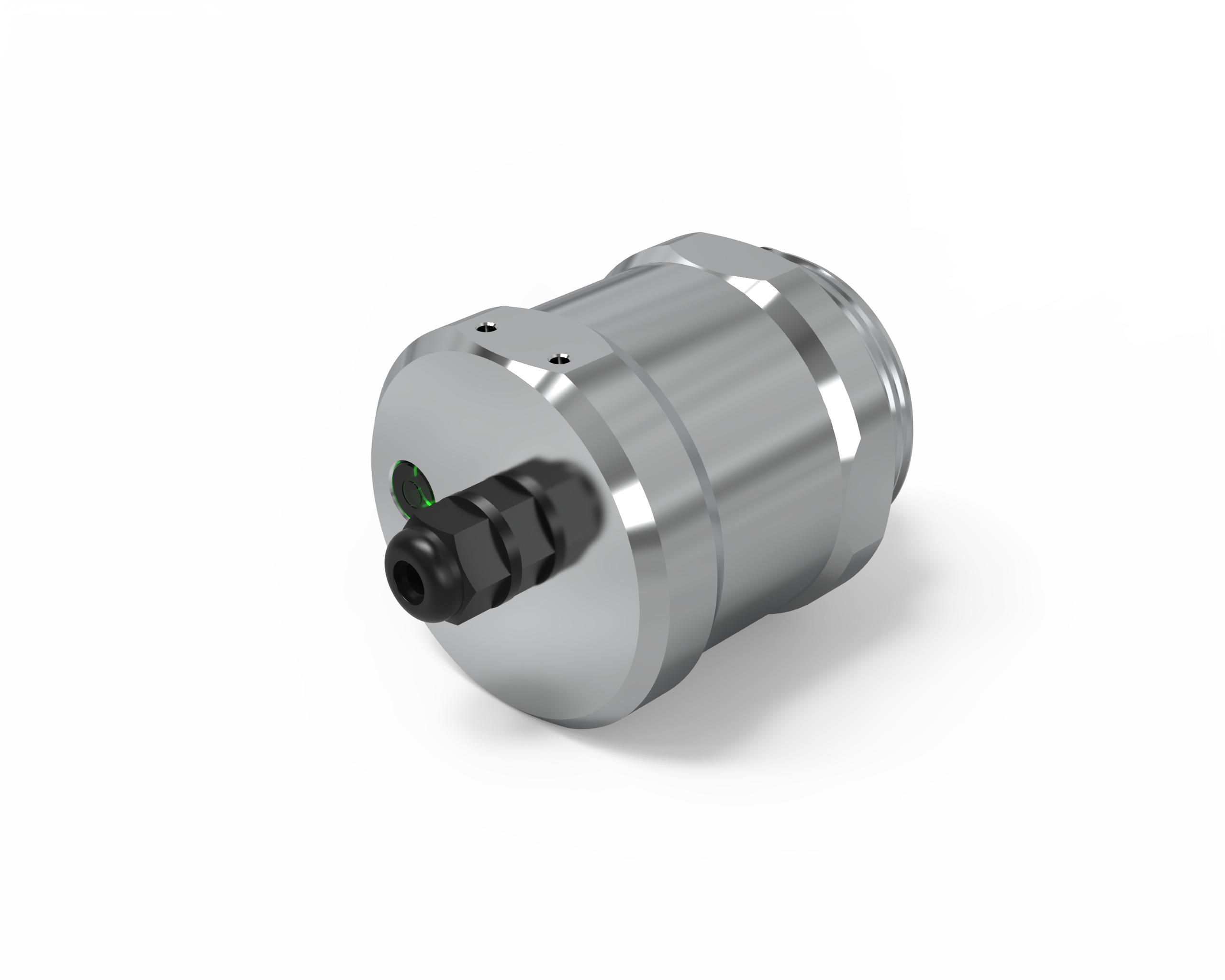

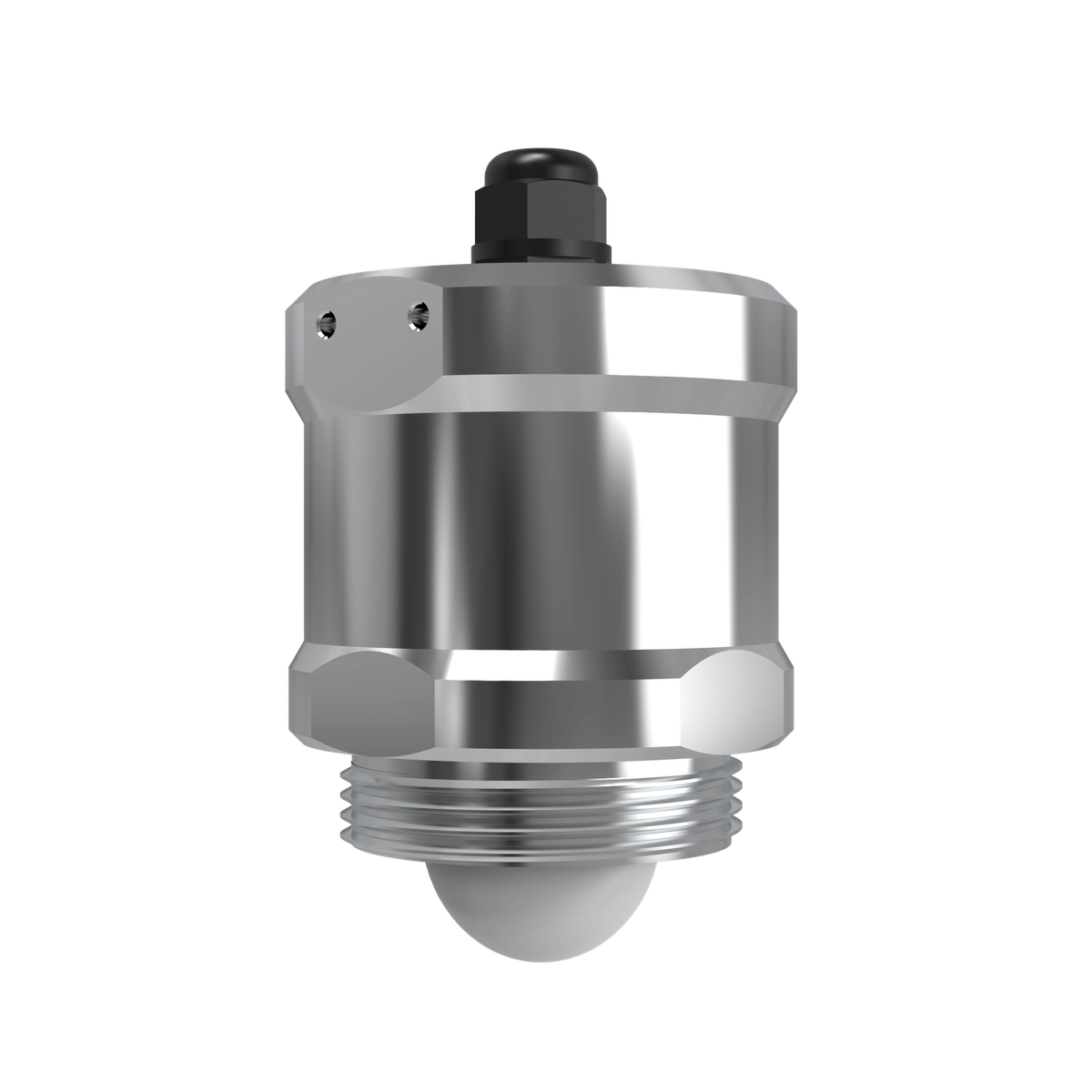

Compact 60 GHz radar sensor for canals, reservoirs, underground pipe networks and water-level telemetry.

Frequency60 GHz class

Range7-30 m class

OutputRS-485 / 4-20 mA

ProtectionIP67 / IP68 class

Request quote Attach files

Why choose· 01

Built for your duty.

Water infrastructure fit

60 GHz radar is commonly used for rivers, channels, tanks and underground water-level points.

Compact low-power option

Short-to-medium range sensors can be paired with telemetry cabinets or solar-powered monitoring stations.

Non-contact in dirty water

The sensor stays above water and avoids fouling from sediment, sewage or floating debris.

Engineer-checked selection

WELK checks medium, tank/silo height, nozzle drawing, measuring range, pressure, temperature, output signal and certificate requirement so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

60 GHz radar water-level sensors are a practical sub-series for hydrology, drainage and utility monitoring where range is shorter than large tank radar.

WELK confirms range, mounting bracket, enclosure rating, power budget, output protocol and lightning protection before quoting.

60 GHz Water Level Radar Sensor is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Radar selection starts from medium dielectric, measuring distance, nozzle size, vapor/foam/dust condition, pressure, temperature and whether the antenna needs purge, aiming or hazardous-area approval.

Specifications· 03

60 GHz Water Level Radar Sensor specification range.

Parameter	Value
Measuring principle	60 GHz non-contact radar
Range class	7 m, 10 m, 30 m or project-confirmed
Output	RS-485 Modbus, 4-20 mA or pulse by model
Power	Low-voltage DC for telemetry systems
Protection	Outdoor IP67/IP68 class by housing
RFQ data	Water surface distance, bridge/bracket geometry, output, power and environment
Output signal	4...20mA/HART, RS485/Modbus
Range / measuring length	20 meters
Temperature rating	-40~150°C
Accuracy class	±3mm

Applications· 04

Where this product works.

CanalsReservoirsDrainage wellsUnderground pipe networksRiver level monitoringStorage tanksProcess vesselsBulk solids

Application

Water & Wastewater Level

Water utilities and wastewater plants

Wetted materials & output options.

PPPVDFCast AluminumStainless SteelCustom rangeMounting bracketLogo/Marking

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common 60 ghz water level radar sensor specs.

Measuring principle Range class Output Power Protection RFQ data

FAQ· 06

60 GHz Water Level Radar Sensor questions.

How do I select 60 GHz Water Level Radar Sensor?

Start from medium, tank/silo height, nozzle drawing, measuring range, pressure, temperature, output signal and certificate requirement. WELK then confirms the exact model, material and output before quotation.

What is the difference between 60 GHz Water Level Radar Sensor and ultrasonic?

60 GHz Water Level Radar Sensor is selected for its specific duty and limitations. WELK compares it with ultrasonic, hydrostatic, guided wave radar when the process data suggests another technology may be safer.

Can 60 GHz Water Level Radar Sensor be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of 60 GHz Water Level Radar Sensor?

Very low dielectric media, heavy buildup on the antenna, severe internal obstructions or unusual nozzle geometry should be reviewed before order.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need 60 ghz water level radar sensor? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
