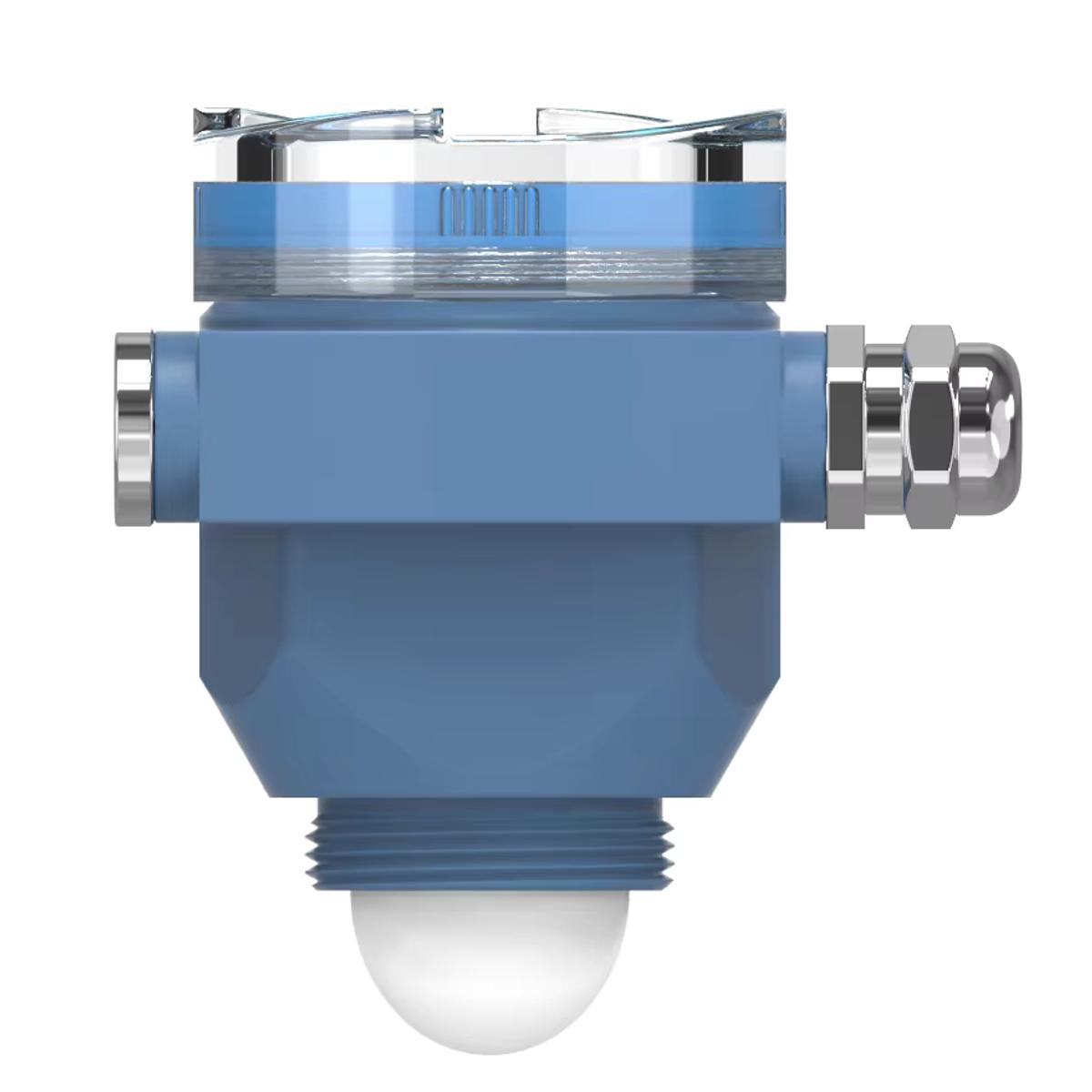

Wireless IoT Radar Level Meter

Name: Wireless IoT Radar Level Meter
Brand: WELK Level

Battery or low-power radar level meter with 4G, NB-IoT, LoRa or wireless telemetry options.

Communication4G / NB-IoT / LoRa

PowerBattery / solar review

Sensor60/80 GHz by range

UseRemote tanks and rivers

Request quote Attach files

Why choose· 01

Built for your duty.

Remote monitoring

Wireless radar is useful where cabling is expensive or the measuring point is remote.

Telemetry-ready data

Level data can be transmitted to cloud platforms, SCADA gateways or data loggers depending on the module.

Power budget review

Battery life depends on sampling interval, communication network, temperature and enclosure design.

Engineer-checked selection

WELK checks medium, tank/silo height, nozzle drawing, measuring range, pressure, temperature, output signal and certificate requirement so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

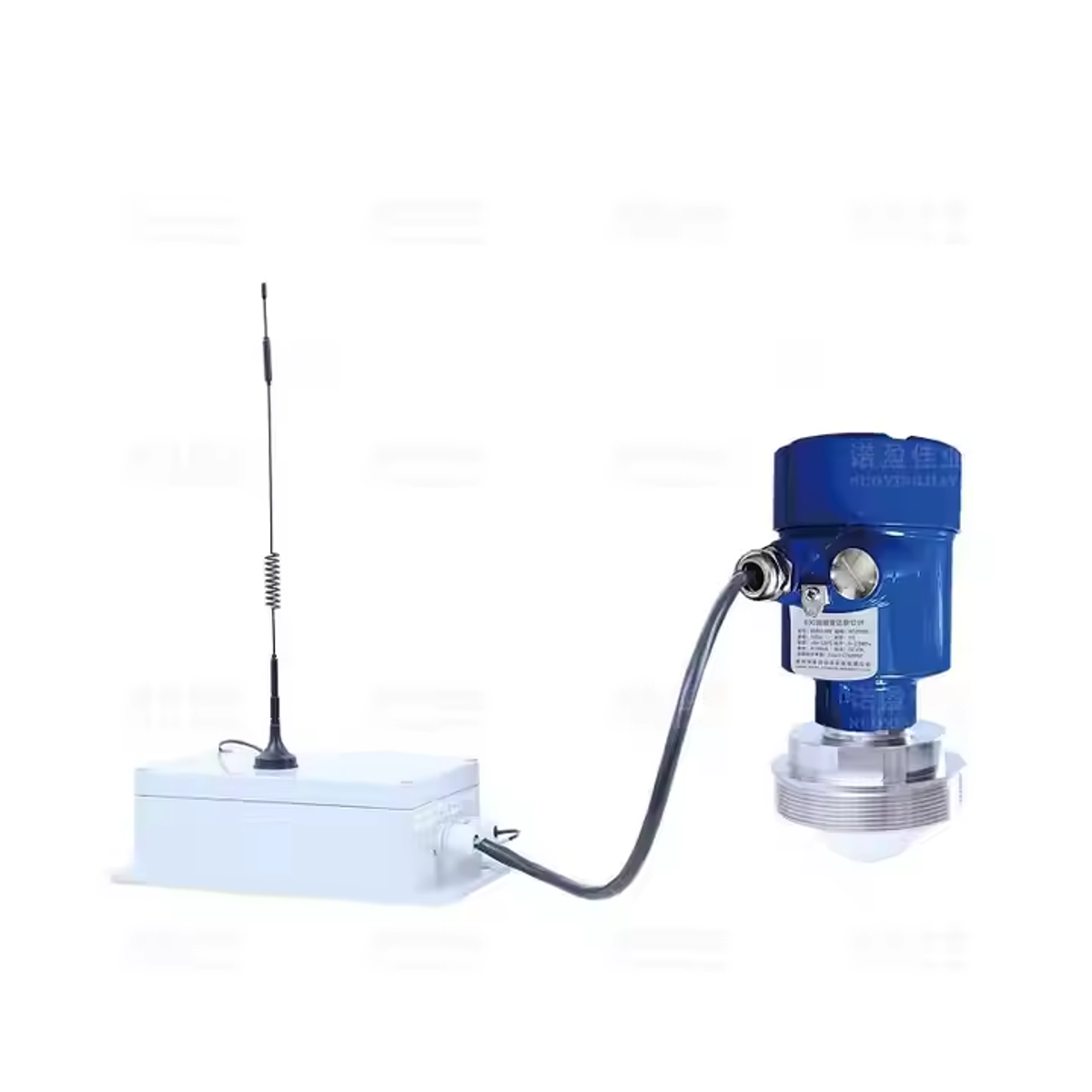

Wireless IoT radar meters combine a non-contact radar sensor with a telemetry module for remote water, tank or silo monitoring.

The product page is a configurable package: final communication module, antenna, battery, solar panel and SIM/cloud options must be selected by project.

Wireless IoT Radar Level Meter is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Radar selection starts from medium dielectric, measuring distance, nozzle size, vapor/foam/dust condition, pressure, temperature and whether the antenna needs purge, aiming or hazardous-area approval.

Specifications· 03

Wireless IoT Radar Level Meter specification range.

Parameter	Value
Sensor principle	60 GHz or 80 GHz radar by range and medium
Communication	4G, NB-IoT, LoRa or RS-485 gateway by project
Power	Battery, solar or DC supply by duty cycle
Enclosure	Outdoor cabinet or integrated housing by environment
Data	Level, distance, alarm and battery status by module
RFQ data	Location, network, reporting interval, range, power source and platform requirement
Connection / mounting	Threaded Connection G1.5
Power supply	DC 24V(22V~30V)
Pressure rating	Normal Atmospheric Pressure
Accuracy class	2mm

Applications· 04

Where this product works.

Remote water tanksRiver gaugesSilo telemetryStormwater monitoringUnmanned pump stationsStorage tanksProcess vesselsBulk solids

Application

Water & Wastewater Level

Water utilities and wastewater plants

Wetted materials & output options.

Cast AluminumStainless SteelPPCustom rangeMounting bracketLogo/Marking

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common wireless iot radar level meter specs.

Sensor principle Communication Power Enclosure Data RFQ data

FAQ· 06

Wireless IoT Radar Level Meter questions.

How do I select Wireless IoT Radar Level Meter?

Start from medium, tank/silo height, nozzle drawing, measuring range, pressure, temperature, output signal and certificate requirement. WELK then confirms the exact model, material and output before quotation.

What is the difference between Wireless IoT Radar Level Meter and ultrasonic?

Wireless IoT Radar Level Meter is selected for its specific duty and limitations. WELK compares it with ultrasonic, hydrostatic, guided wave radar when the process data suggests another technology may be safer.

Can Wireless IoT Radar Level Meter be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Wireless IoT Radar Level Meter?

Very low dielectric media, heavy buildup on the antenna, severe internal obstructions or unusual nozzle geometry should be reviewed before order.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need wireless iot radar level meter? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
