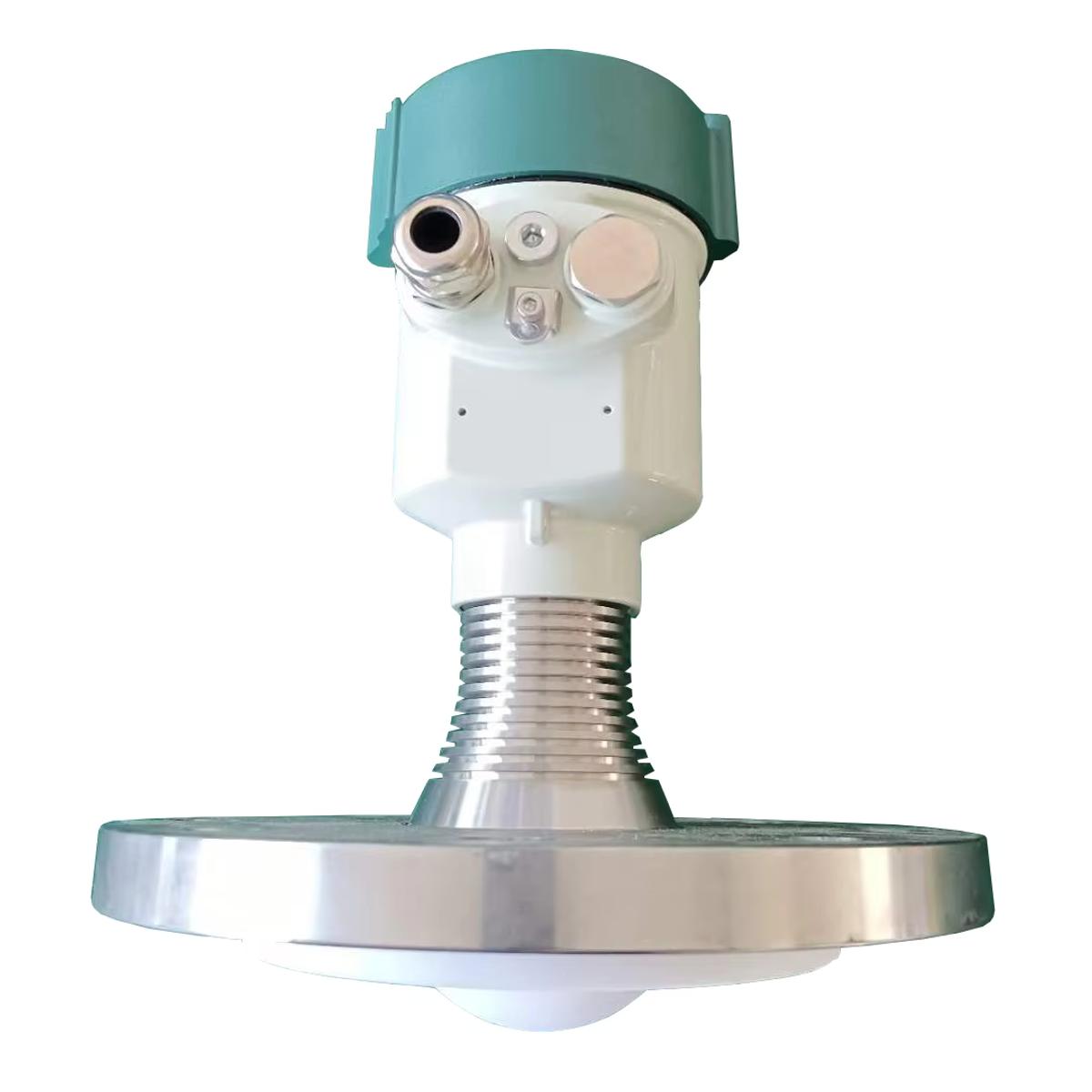

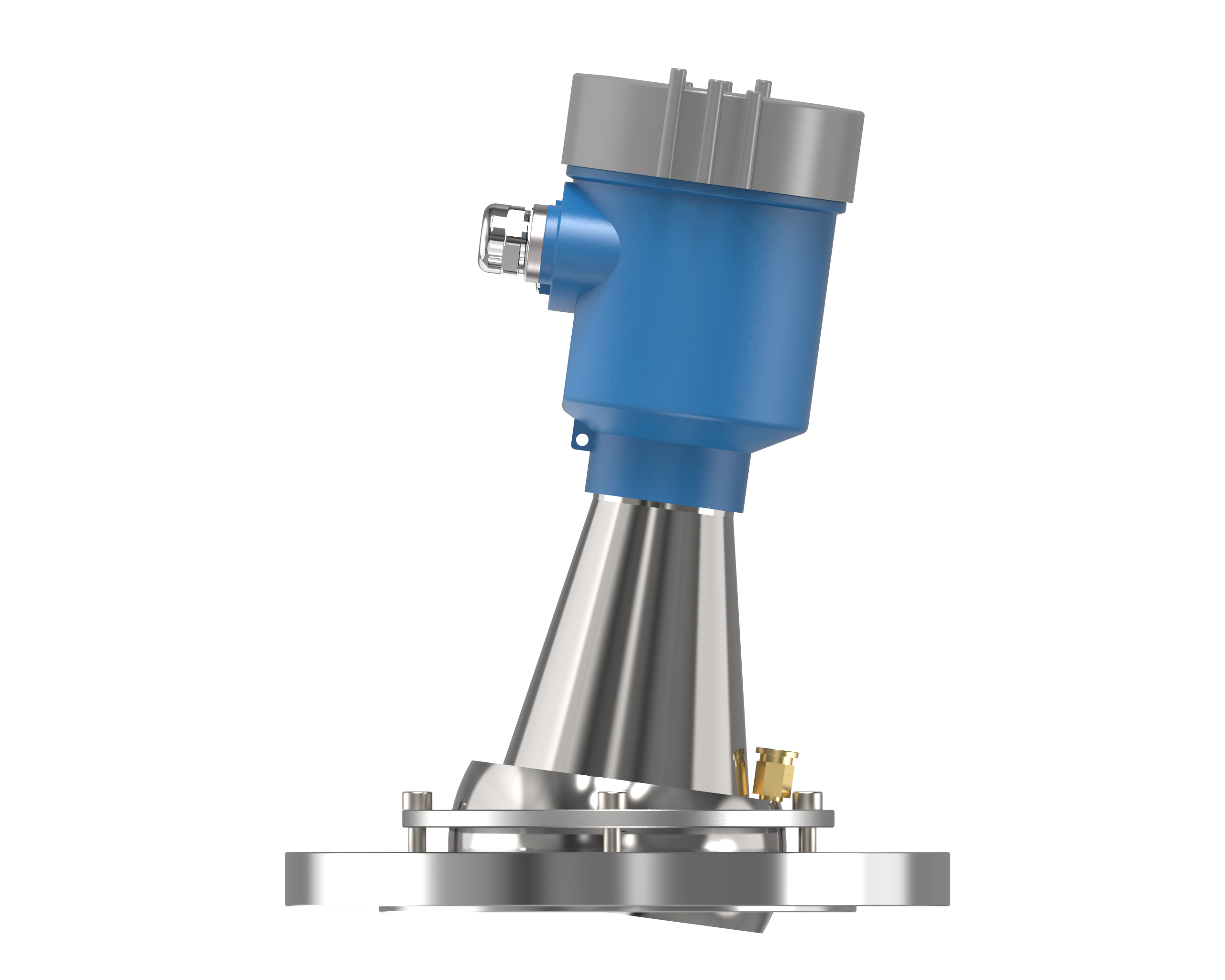

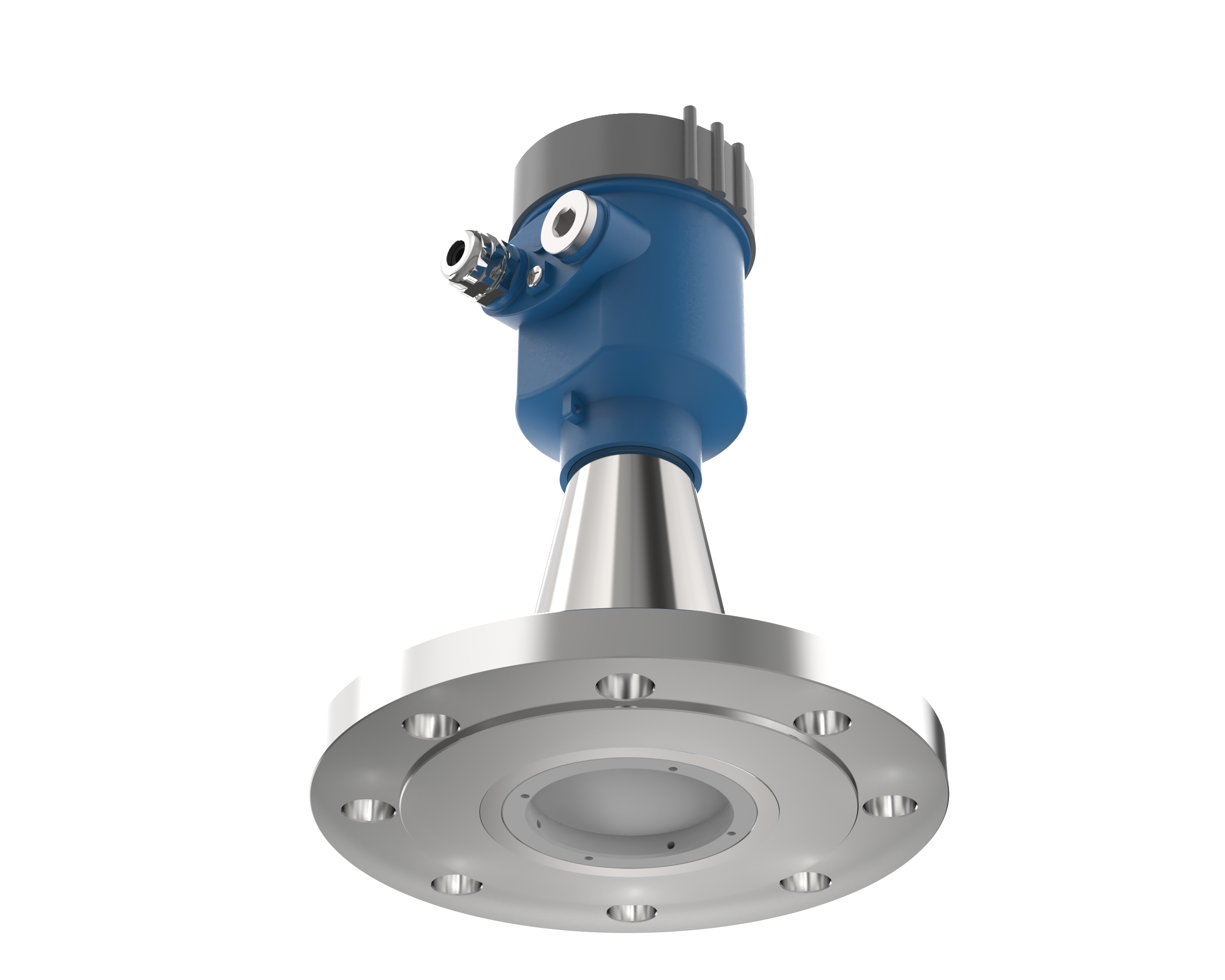

80 GHz Radar Level Meter with Air Purge

Name: 80 GHz Radar Level Meter with Air Purge
Brand: WELK Level

Self-cleaning air-purge radar configuration for dusty silos and buildup-prone powder applications.

Range classUp to 120 m class

PurgeAir purge / blowing port

Beam3 degree class

MediaDusty powders and solids

Request quote Attach files

Why choose· 01

Built for your duty.

Self-cleaning antenna path

A purge port allows clean dry air to help keep the antenna or lens surface clear in heavy dust.

Built for silo dust

This configuration is commonly requested for fly ash, cement, mineral powder and pellet silos.

RFQ needs air details

Air pressure, air quality, operating dust level and whether purge runs continuously or intermittently should be confirmed.

Engineer-checked selection

WELK checks medium, tank/silo height, nozzle drawing, measuring range, pressure, temperature, output signal and certificate requirement so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Air-purge radar is a high-frequency radar level meter configuration for solids or sticky vapors where dust or buildup may cover the antenna surface.

This self-cleaning radar option is handled as project-reviewed configuration; WELK quotes it as a configured radar package with purge connection, antenna selection and installation notes confirmed by project.

80 GHz Radar Level Meter with Air Purge is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Radar selection starts from medium dielectric, measuring distance, nozzle size, vapor/foam/dust condition, pressure, temperature and whether the antenna needs purge, aiming or hazardous-area approval.

Air purge is useful when dust or condensation can coat the antenna; purge air must be clean, dry and compatible with site practice.

Specifications· 03

80 GHz Radar Level Meter with Air Purge specification range.

Parameter	Value
Measuring principle	76-81 GHz FMCW radar
Range class	Up to 120 m class by selected antenna and medium
Purge connection	Air purge / blowing port by configuration
Accuracy class	Millimeter class on suitable applications
Process pressure	Low-pressure silo service; final rating by model
RFQ data	Material, dust level, silo height, nozzle, purge air pressure and output signal
Output signal	4-20mA/HART(2-wire / 4-wire) RS485/Modbus
Power supply	24VDC
Material options	Stainless Steel
Range / measuring length	≤120m

Applications· 04

Where this product works.

Fly ash silosCement silosMineral powder binsPellet storageStrong dust serviceStorage tanksProcess vesselsBulk solids

Application

Silo & Powder Level

Powder silos and bulk solids

Wetted materials & output options.

316L PTFEStainless SteelCast AluminumCustom rangeProcess connectionProbe / antenna selectionExplosion-proof option

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common 80 ghz radar level meter with air purge specs.

Measuring principle Range class Purge connection Accuracy class Process pressure RFQ data

FAQ· 06

80 GHz Radar Level Meter with Air Purge questions.

How do I select 80 GHz Radar Level Meter with Air Purge?

Start from medium, tank/silo height, nozzle drawing, measuring range, pressure, temperature, output signal and certificate requirement. WELK then confirms the exact model, material and output before quotation.

What is the difference between 80 GHz Radar Level Meter with Air Purge and ultrasonic?

80 GHz Radar Level Meter with Air Purge is selected for its specific duty and limitations. WELK compares it with ultrasonic, hydrostatic, guided wave radar when the process data suggests another technology may be safer.

Can 80 GHz Radar Level Meter with Air Purge be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of 80 GHz Radar Level Meter with Air Purge?

Air purge is useful when dust or condensation can coat the antenna; purge air must be clean, dry and compatible with site practice.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need 80 ghz radar level meter with air purge? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
