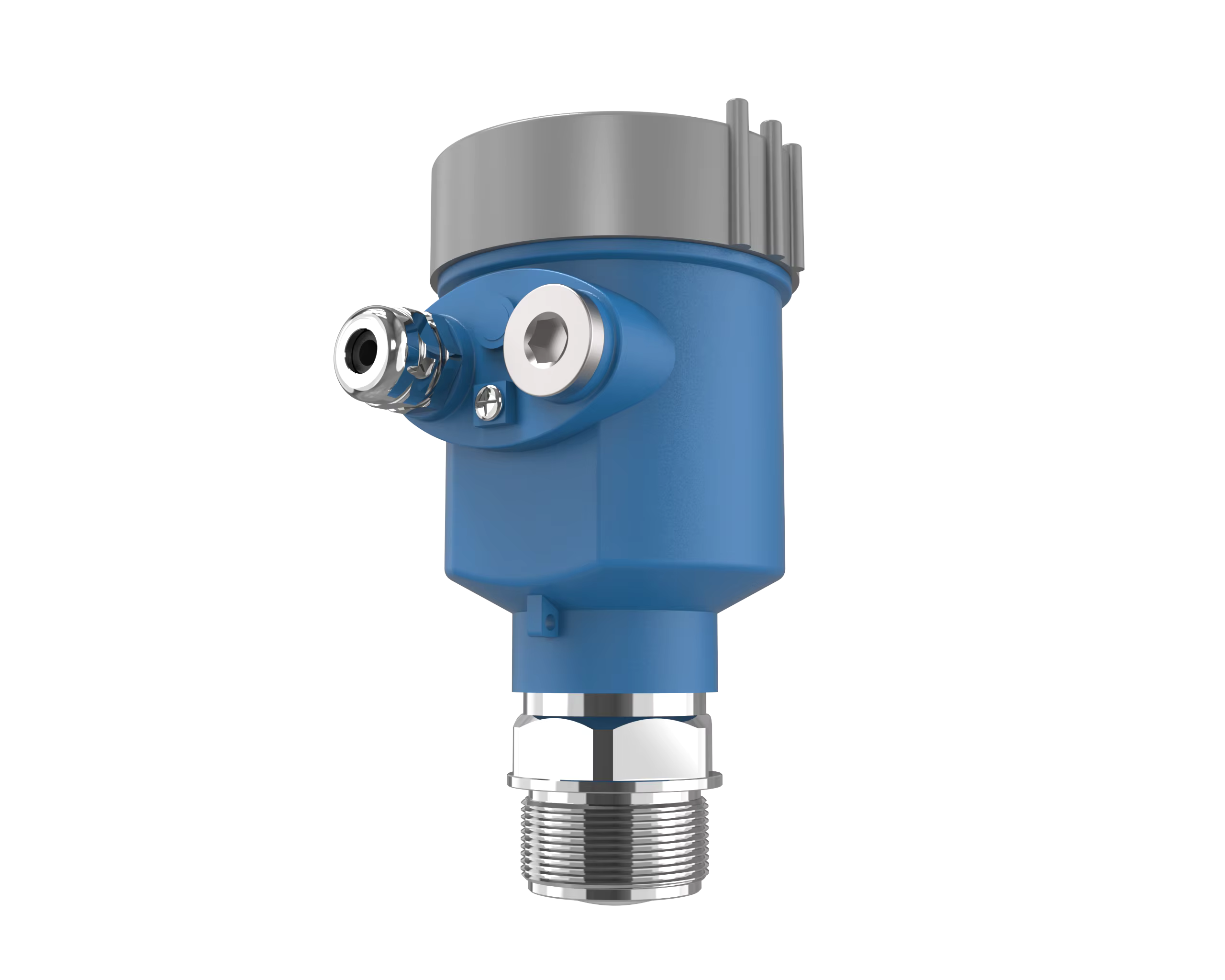

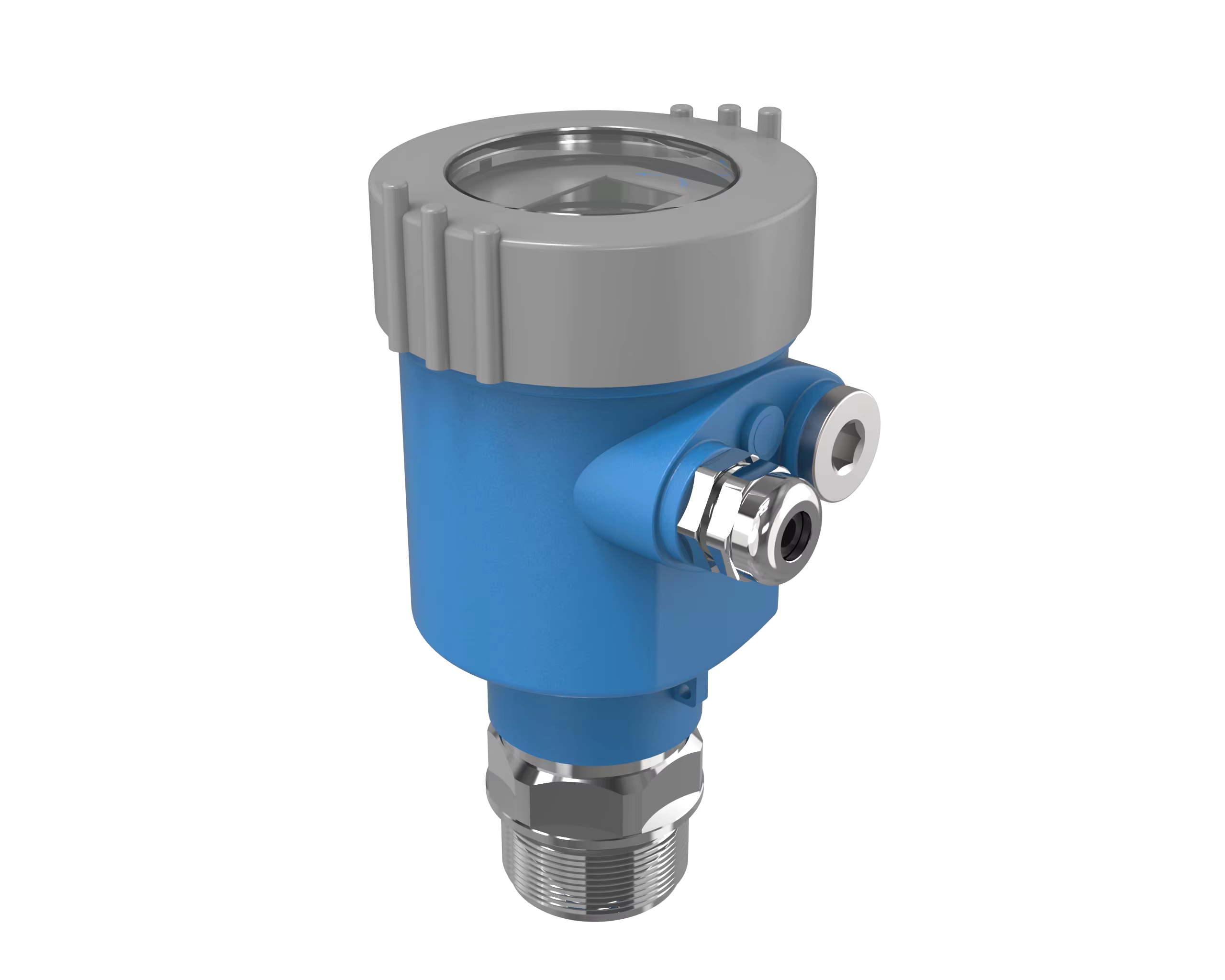

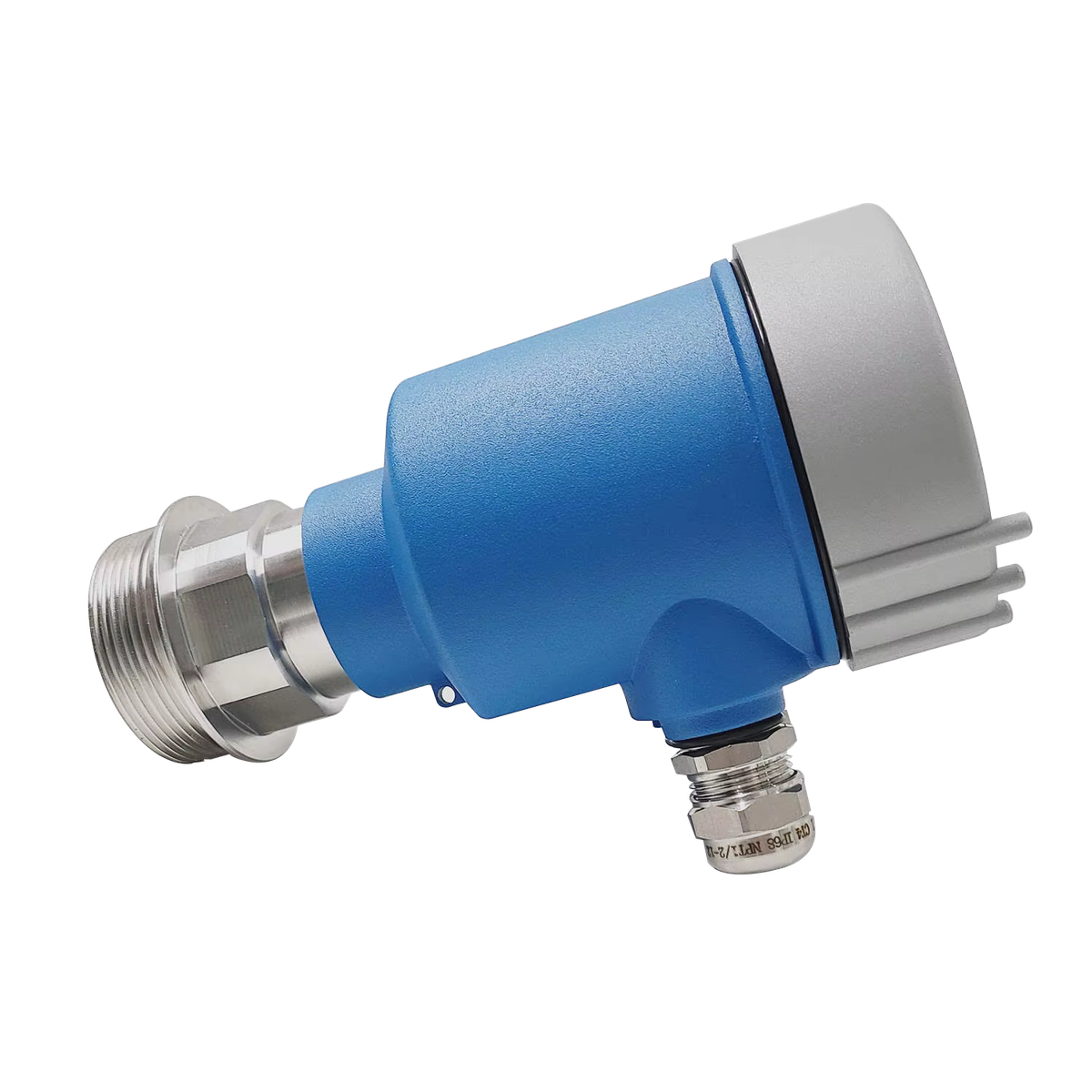

Long Range Silo Radar Level Meter

Name: Long Range Silo Radar Level Meter
Brand: WELK Level

High-frequency radar level meter for tall silos, dusty bulk solids and sloped material surfaces.

Range class30-100 m class

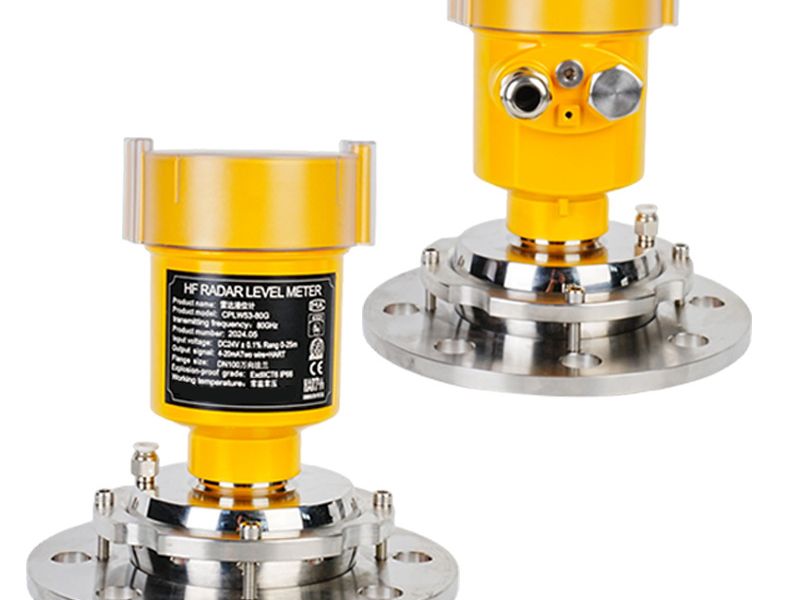

Frequency78/80 GHz class

MediaPowders and granules

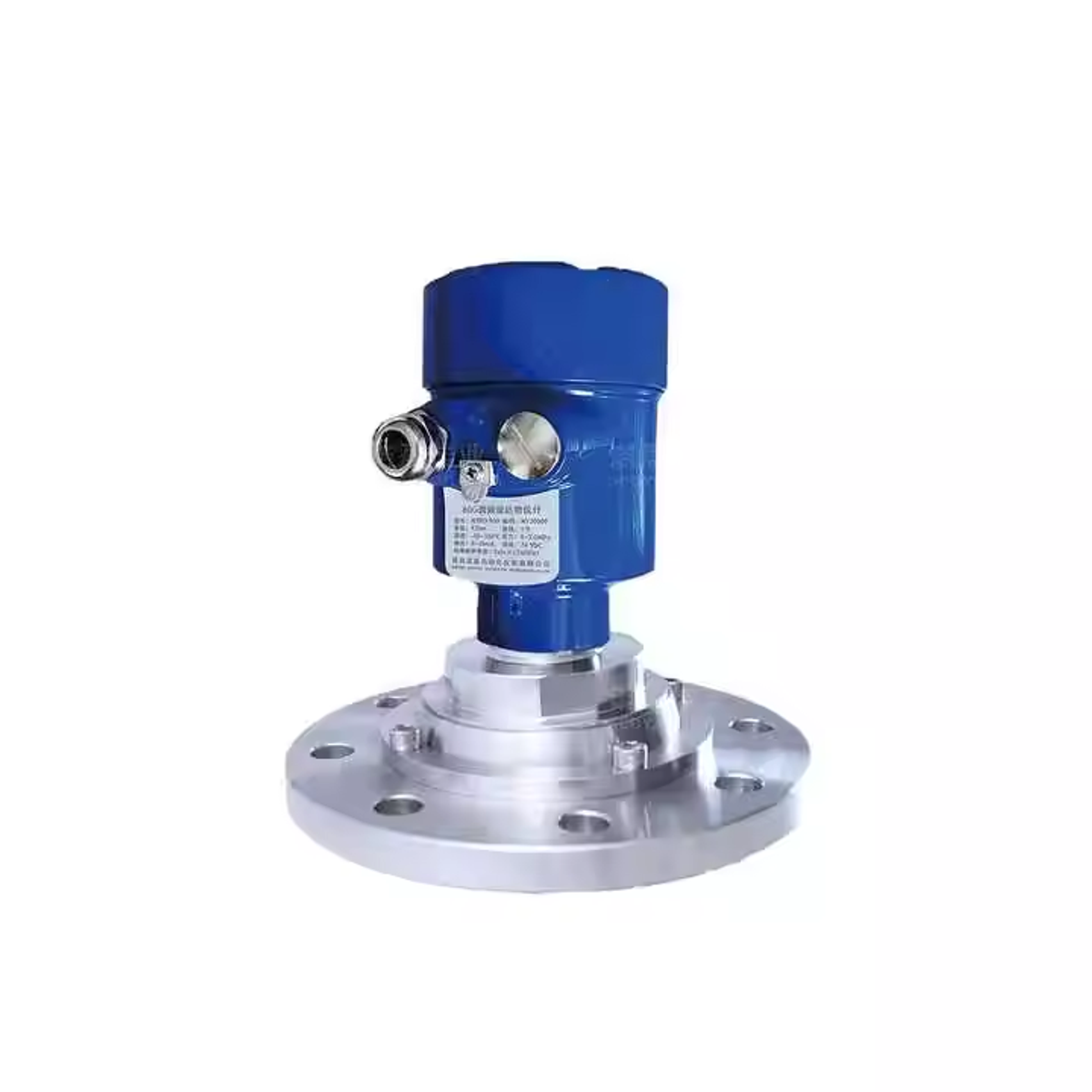

MountingFlange / swivel option

Request quote Attach files

Why choose· 01

Built for your duty.

Dust-tolerant measurement

High-frequency radar is widely used for cement, grain, fly ash and other dusty solids applications.

Narrow beam for silos

A narrow beam angle helps aim around roof structures and improves echo focus on sloped material surfaces.

Application review

Nozzle height, silo diameter, filling stream and material dielectric are checked before model selection.

Engineer-checked selection

WELK checks medium, tank/silo height, nozzle drawing, measuring range, pressure, temperature, output signal and certificate requirement so the quoted configuration matches the application.

Application-matched configuration

Selection notes focus on real tank conditions, measuring range, process connection, output signal and installation limits.

Product details· 02

How it is selected & specified.

Long-range silo radar is a continuous level solution for bulk solids where ultrasonic measurement can be weakened by dust, acoustic noise or long distances.

The final range and antenna are selected from silo height, filling method, expected dust, process temperature and mounting geometry.

Long Range Silo Radar Level Meter is presented as a configurable WELK product family. Final model limits, wetted materials, process connection, certificate and output signal are confirmed from the selected datasheet before quotation.

Radar selection starts from medium dielectric, measuring distance, nozzle size, vapor/foam/dust condition, pressure, temperature and whether the antenna needs purge, aiming or hazardous-area approval.

Specifications· 03

Long Range Silo Radar Level Meter specification range.

Parameter	Value
Measuring principle	High-frequency FMCW radar
Range class	30-100 m class; final value by selected model
Beam	Narrow beam antenna for tall vessels
Media	Powder, pellets, grain, cement, fly ash and mineral solids
Mounting	Flange, thread or swivel aiming by project
RFQ data	Silo height, diameter, nozzle, filling stream and material name
Connection / mounting	Threaded G2''
Output signal	4-20mA
Material options	Aluminum
Power supply	24V DC

Applications· 04

Where this product works.

Cement silosGrain binsPlastic pellet silosFly ash vesselsMineral powder storageStorage tanksProcess vesselsBulk solids

Application

Silo & Powder Level

Powder silos and bulk solids

Wetted materials & output options.

316L PTFEStainless SteelCast AluminumCustom rangeProcess connectionProbe / antenna selectionExplosion-proof option

Send medium, range, tank geometry, process connection and output signal for model review.

Packaging & shipping· 05b

Export packing as standard.

Packed for export with protected sensor head, probe/antenna/chamber support where needed, model label, wiring note and requested inspection or calibration documents.

Packaging and documents →

Spec siblings· 05c

Spec siblings & common long range silo radar level meter specs.

Measuring principle Range class Beam Media Mounting RFQ data

FAQ· 06

Long Range Silo Radar Level Meter questions.

How do I select Long Range Silo Radar Level Meter?

Start from medium, tank/silo height, nozzle drawing, measuring range, pressure, temperature, output signal and certificate requirement. WELK then confirms the exact model, material and output before quotation.

What is the difference between Long Range Silo Radar Level Meter and ultrasonic?

Long Range Silo Radar Level Meter is selected for its specific duty and limitations. WELK compares it with ultrasonic, hydrostatic, guided wave radar when the process data suggests another technology may be safer.

Can Long Range Silo Radar Level Meter be customized?

Yes. Range, process connection, wetted material, output signal, cable length, display, switch points, documents and OEM label can be reviewed by product family.

What are the common limits of Long Range Silo Radar Level Meter?

Very low dielectric media, heavy buildup on the antenna, severe internal obstructions or unusual nozzle geometry should be reviewed before order.

Are the listed specifications final for every project?

No. Published values are typical selection ranges. WELK confirms final limits, material, output, certificate and documents from the actual process data before quotation.

Need long range silo radar level meter? Send the conditions.

Attach tank drawings, old instrument photos or datasheets if available.
